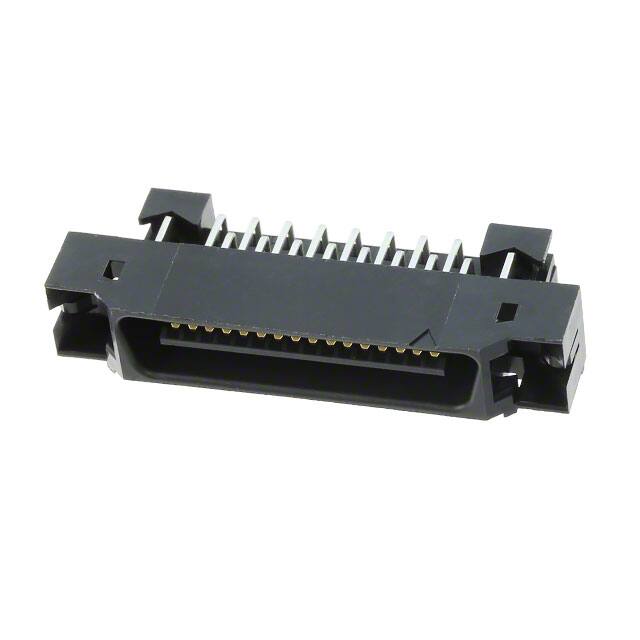

FX2B-32PA-1.27DS

Specifications

Reliability

COMMERCIAL

Operating Temperature Min

-55°C

Reference Standard

UL

Pcb Contact Pattern

STAGGERED

Connector Type

BOARD STACKING CONNECTOR

Din Conformance

NO

Contact Plating

Gold

Number Of Pcb Rows

4

Montaj Tipi

BOARD

Mil Conformance

NO

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

HTS Kodu

8536.69.40.40

Gender

Male

Body Depth

0.591 inch

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Lead Pitch

1.27mm

Length Termination

0.13 inch

Flammability Rating

UL94 V-0

Contact Finish Mating

NOT SPECIFIED

Termination Type

SOLDER

Mixed Contacts

NO

Filter Feature

NO

Contact Resistance

45mOhm

Mounting Option1

LOCKING MECH

Contact Materials

Brass

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

32

Parça Durumu

Obsolete

Housing Material

Plastic

Mating Contact Pitch

0.05 inch

Dielectric Withstanding Voltage

300VAC V

Housing Color

Black

Option

GENERAL PURPOSE

Pcb Contact Row Spacing

1.905 mm

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

ECCN Kodu

EAR99

Iec Conformance

NO
