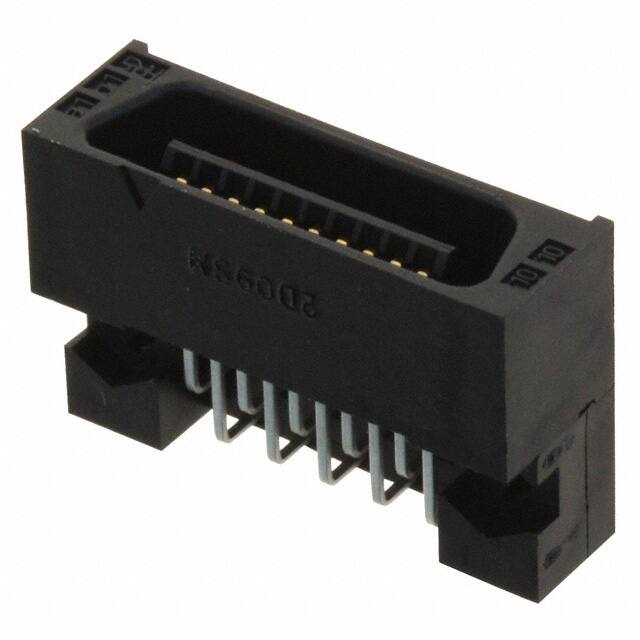

FX2B-20PA-1.27DS

Specifications

Housing Material

Plastic

Dielectric Withstanding Voltage

300VAC V

Mating Contact Pitch

0.05 inch

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

20

Parça Durumu

Obsolete

Pcb Contact Row Spacing

1.905 mm

Option

GENERAL PURPOSE

Housing Color

Black

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Iec Conformance

NO

Body Length Or Diameter

1.194 inch

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

Bodyshell Style

RECEPTACLE

Montaj Stili

RIGHT ANGLE

Ul Flammability Code

94V-0

Operating Temperature Min

-55°C

Reference Standard

UL

Reliability

COMMERCIAL

Contact Plating

Gold

Din Conformance

NO

Number Of Pcb Rows

4

Pcb Contact Pattern

STAGGERED

Connector Type

BOARD STACKING CONNECTOR

Mil Conformance

NO

Montaj Tipi

BOARD

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Gender

Male

Body Depth

0.591 inch

Flammability Rating

UL94 V-0

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Lead Pitch

1.27mm

Length Termination

0.13 inch

Mixed Contacts

NO

Contact Finish Mating

NOT SPECIFIED
