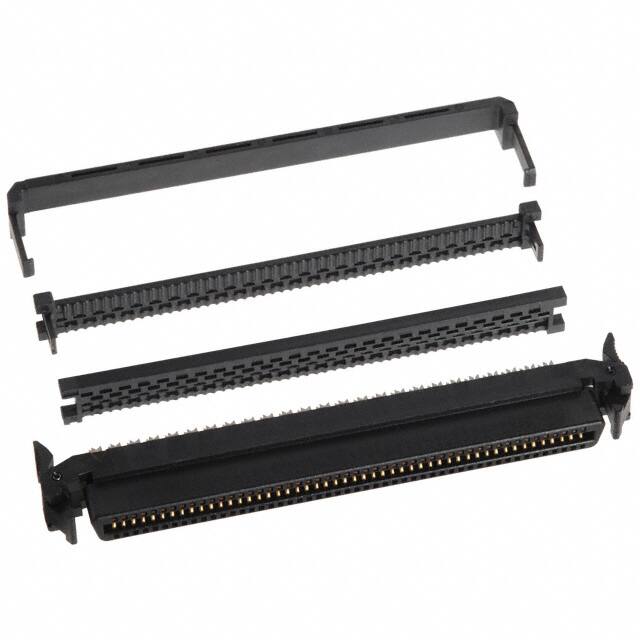

Specifications
- Option
- GENERAL PURPOSE
- Contact Pattern
- RECTANGULAR
- Pitch
- 1.27mm
- Housing Material
- PBT
- Contact Design
- PREASSEM CONN
- Dielectric Withstanding Voltage
- 300VAC V
- Number Of Contacts
- 100
- Sıra Sayısı
- 2
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Renk
- Black
- Iec Conformance
- NO
- Body Length Or Diameter
- 3.096 inch
- Kurşunsuz
- Lead Free
- Contact Gender
- FEMALE
- RoHS Durumu
- RoHS Compliant
- Ul Flammability Code
- 94V-0
- Radyasyon Dayanımı
- No
- Operating Temperature Max
- 85°C
- Fabrika Tedarik Süresi
- 10 Weeks
- Mil Conformance
- NO
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Nominal Gerilim
- 125V
- Akım Değeri
- 500mA
- Rated Current Signal
- 0.5A
- Wirecable Type
- Ribbon
- Operating Temperature Min
- -55°C
- Kurşunsuz Kodu
- yes
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Din Conformance
- NO
- Contact Plating
- Gold
- JESD-609 Kodu
- e3
- Connector Type
- IDC, Receptacle, Socket
- Mixed Contacts
- NO
- Contact Finish Mating
- MATTE TIN
- Montaj
- Free Hanging
- Contact Style
- BELLOWED TYPE
- Filter Feature
- NO
- Contact Resistance
- 45mOhm
