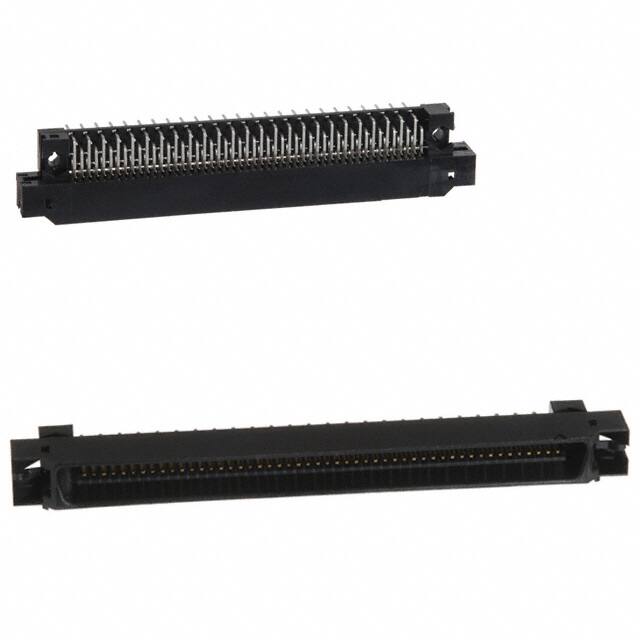

FX2B-100PA-1.27DS

Specifications

Housing Material

Plastic

Dielectric Withstanding Voltage

300VAC V

Mating Contact Pitch

0.05 inch

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

100

Parça Durumu

Obsolete

Option

GENERAL PURPOSE

Pcb Contact Row Spacing

1.905 mm

Housing Color

Black

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Body Length Or Diameter

3.194 inch

Iec Conformance

NO

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

Bodyshell Style

RECEPTACLE

Montaj Stili

RIGHT ANGLE

Ul Flammability Code

94V-0

Operating Temperature Min

-55°C

Reference Standard

UL

Reliability

COMMERCIAL

Din Conformance

NO

Contact Plating

Gold

Number Of Pcb Rows

4

Pcb Contact Pattern

STAGGERED

Connector Type

BOARD STACKING CONNECTOR

Mil Conformance

NO

Montaj Tipi

BOARD

Rated Current Signal

0.5A

Body Depth

0.591 inch

Gender

Male

Flammability Rating

UL94 V-0

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Lead Pitch

1.27mm

Length Termination

0.13 inch

Mixed Contacts

NO

Contact Finish Mating

NOT SPECIFIED

Termination Type

SOLDER
