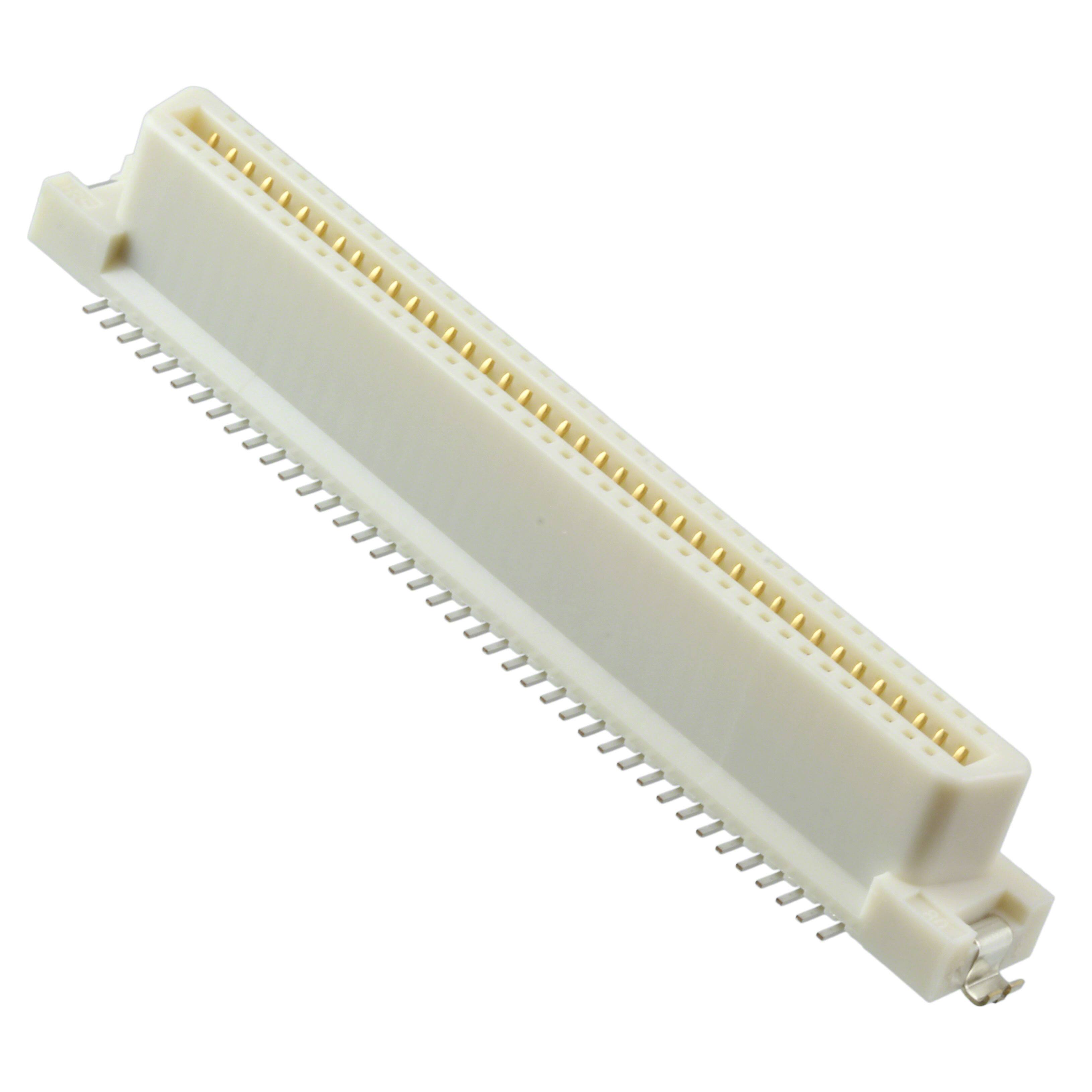

FX2-80S-1.27SV

Specifications

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

Montaj Stili

STRAIGHT

Operating Temperature Max

85°C

Body Depth

0.146 inch

Housing Material

Plastic

Mixed Contacts

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Housing Color

Brown

Total Number Of Contacts

80

Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.05 inch

Pcb Contact Pattern

RECTANGULAR

Bodyshell Style

RECEPTACLE

Option

GENERAL PURPOSE

Termination Type

SURFACE MOUNT

Parça Durumu

Obsolete

Pozisyon Sayısı

80

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

6.2484 mm

Mil Conformance

NO

Sıra Sayısı

2

Contact Style

BELLOWED TYPE

Connector Type

BOARD CONNECTOR

Contact Gender

FEMALE

Din Conformance

NO

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

1.27mm

Body Length Or Diameter

2.396 inch

Montaj Tipi

BOARD

Body Breadth

0.276 inch

Rated Current Signal

0.5A

Contact Materials

Bronze

Kurşunsuz

Contains Lead

Operating Temperature Min

-55°C

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant
