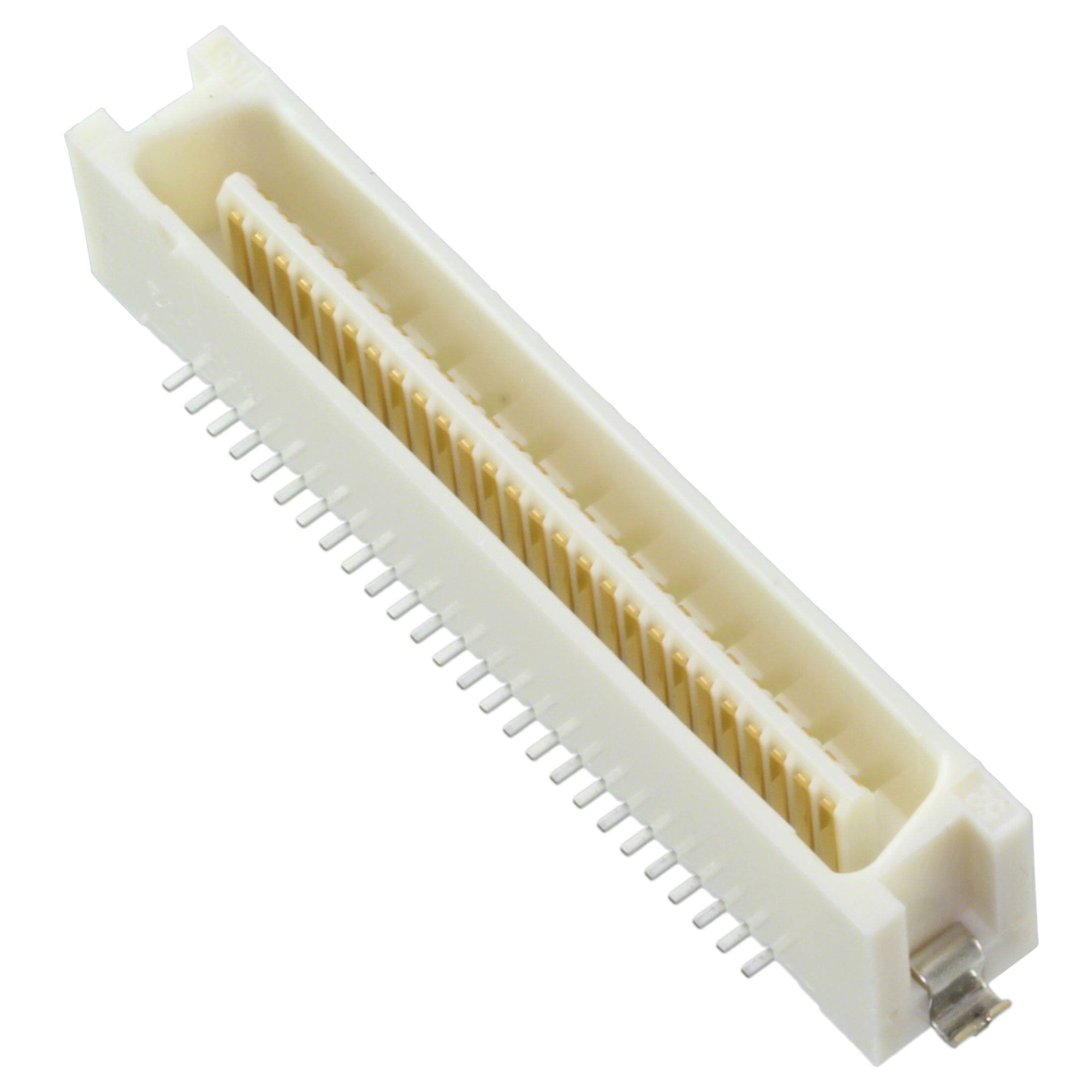

FX2-52P-1.27SV

Specifications

Operating Temperature Max

85°C

Body Depth

0.339 inch

Connector Style

Center Strip Contacts

Housing Material

Plastic

ECCN Kodu

EAR99

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

Mating Contact Pitch

0.05 inch

Pcb Contact Pattern

RECTANGULAR

Bodyshell Style

RECEPTACLE

Mixed Contacts

NO

Ul Flammability Code

94V-0

Housing Color

Brown

Total Number Of Contacts

52

Contact Pattern

RECTANGULAR

Connector Type

Plug

Reliability

COMMERCIAL

Din Conformance

NO

Contact Gender

MALE

Seri

FX2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Terminal

Solder

Pozisyon Sayısı

52

Sıra Sayısı

2

Mil Conformance

NO

Pcb Contact Row Spacing

5.588 mm

Dielectric Withstanding Voltage

300VAC V

Contact Finish

Gold

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Flammability Rating

UL94 V-0

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Number Of Pcb Rows

2

Additional Feature

POLARIZED
