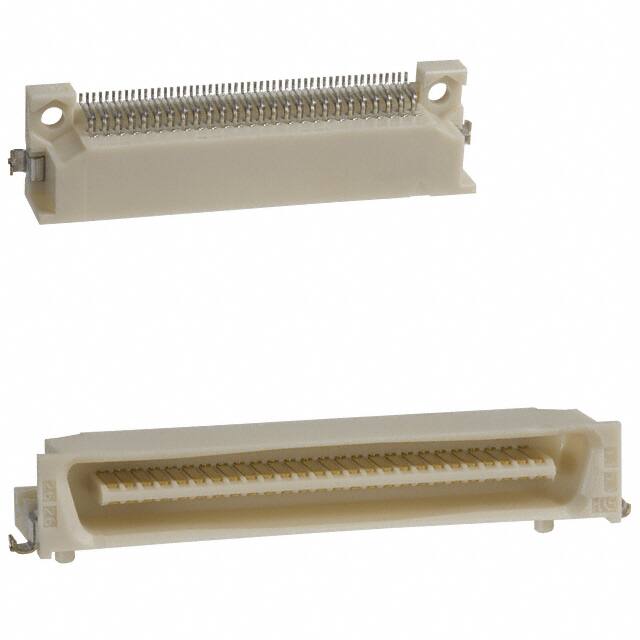

FX2-52P-0.635SH

Specifications

Pozisyon Sayısı

52

Sıra Sayısı

2

Mil Conformance

NO

Dielectric Withstanding Voltage

300VAC V

Akım Değeri

500mA

Terminal

Solder

Parça Durumu

Obsolete

Option

GENERAL PURPOSE

Seri

FX2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Plug

Reliability

COMMERCIAL

Din Conformance

NO

Contact Gender

MALE

Kurşunsuz

Contains Lead

Montaj Tipi

Surface Mount, Right Angle

Rated Current Signal

0.5A

Contact Materials

Bronze

Body Length Or Diameter

1.814 inch

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Voltage Rated Ac

125V

Additional Feature

POLARIZED

Number Of Pcb Rows

1

Flammability Rating

UL94 V-0

Iec Conformance

NO

RoHS Durumu

Non-RoHS Compliant

Contact Finish

Gold

Operating Temperature Min

-55°C

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Housing Material

PBT

Connector Style

Center Strip Contacts

Operating Temperature Max

85°C

Body Depth

0.441 inch

Pitch

635μm

Total Number Of Contacts

52

Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4
