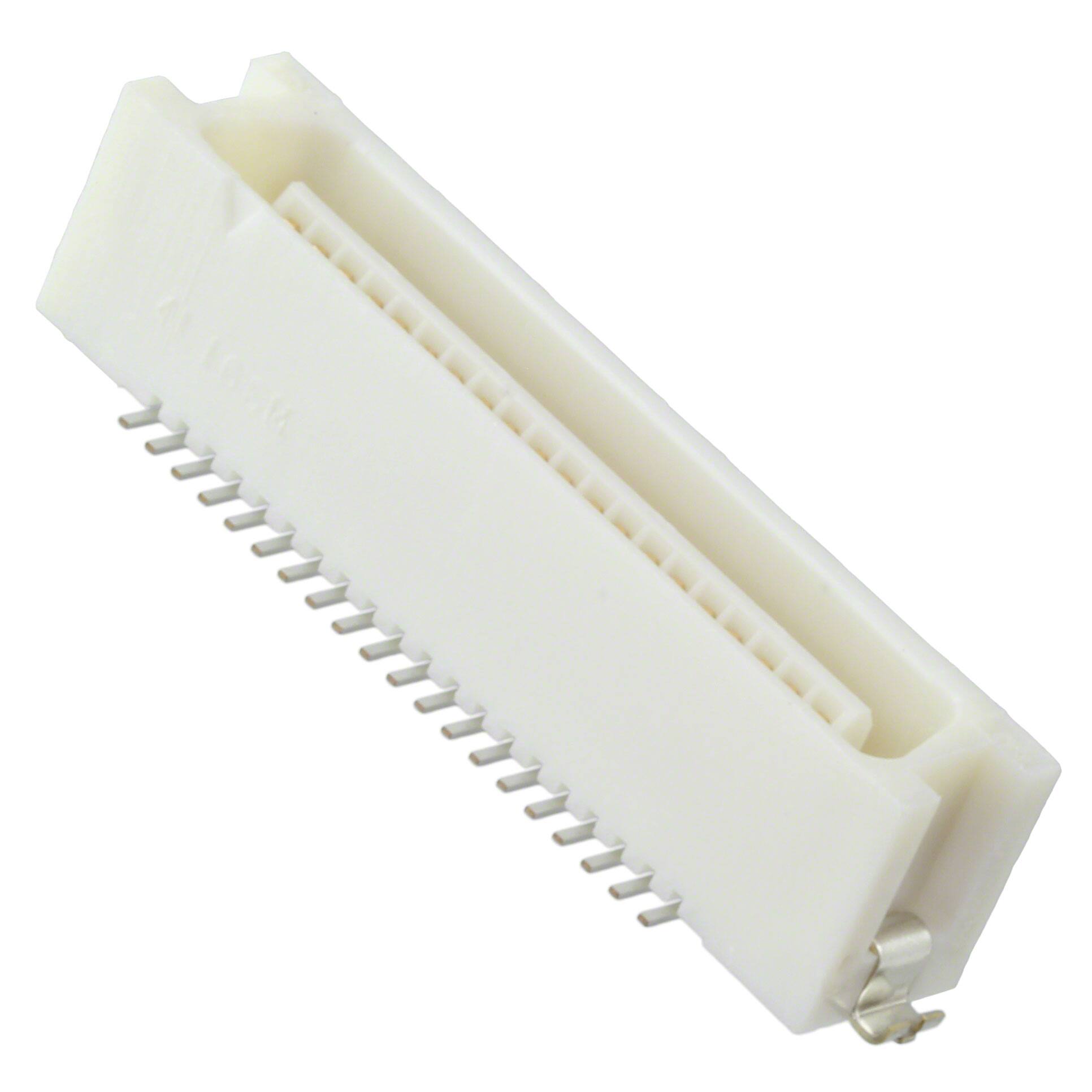

FX2-40P-1.27DS

Specifications

Contact Resistance

45mOhm

ECCN Kodu

EAR99

Housing Material

Plastic

Body Depth

0.591 inch

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

JESD-609 Kodu

e4

Housing Color

Black

Terminal

Solder

Parça Durumu

Obsolete

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Option

GENERAL PURPOSE

Connector Type

Plug

Din Conformance

NO

Seri

FX2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Contains Lead

Body Length Or Diameter

1.396 inch

Iec Conformance

NO

Flammability Rating

UL94 V-0

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Contact Finish

Gold

Operating Temperature Min

-55°C

Length Termination

0.13 inch

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Connector Style

Center Strip Contacts

Operating Temperature Max

85°C

Total Number Of Contacts

40

Mixed Contacts

NO

Ul Flammability Code

94V-0

Tip

Board to Board

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Mating Contact Pitch

0.05 inch

Pozisyon Sayısı

40

Mil Conformance

NO

Reliability

COMMERCIAL
