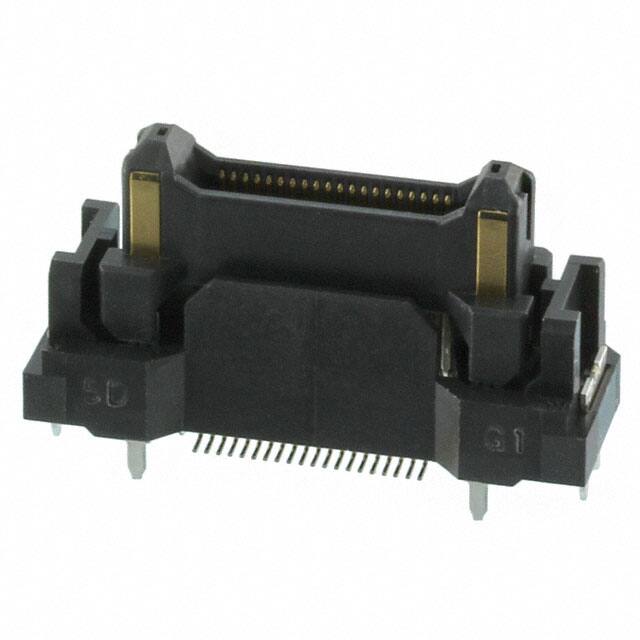

FX23-40P-0.5SV15

Specifications

Durability

100 Cycles

Body Depth

0.506 inch

Ambalaj

Tray

Stack Height Mating

15mm 20mm

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Pozisyon Sayısı

44 (40 + 4 Power)

Montaj

Surface Mount

Contact Style

CENTRONIC

Filter Feature

NO

Insulator Color

BLACK

Insulation Materials

POLYAMIDE

Contact Resistance

70mOhm

Operating Temperature Min

-55°C

Kurşunsuz Kodu

yes

Reference Standard

UL

Number Of Pcb Rows

2

Pcb Contact Pattern

RECTANGULAR

Connector Type

Header, Outer Shroud Contacts

Seri

FunctionMax™ FX23

Total Number Of Contacts

40

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Height Above Board

0.507 12.88mm

Contact Finish

Gold

Montaj Tipi

Surface Mount

Insulation Resistance

100000000Ohm

Rated Current Signal

0.5A

ECCN Kodu

EAR99

Operating Temperature Max

85°C

Fabrika Tedarik Süresi

12 Weeks

Özellikler

Board Guide

Body Length Or Diameter

0.933 inch

Contact Finish Thickness

3.94μin 0.10μm

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Contact Gender

MALE

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Pitch

0.020 0.50mm

Sıra Sayısı

2
