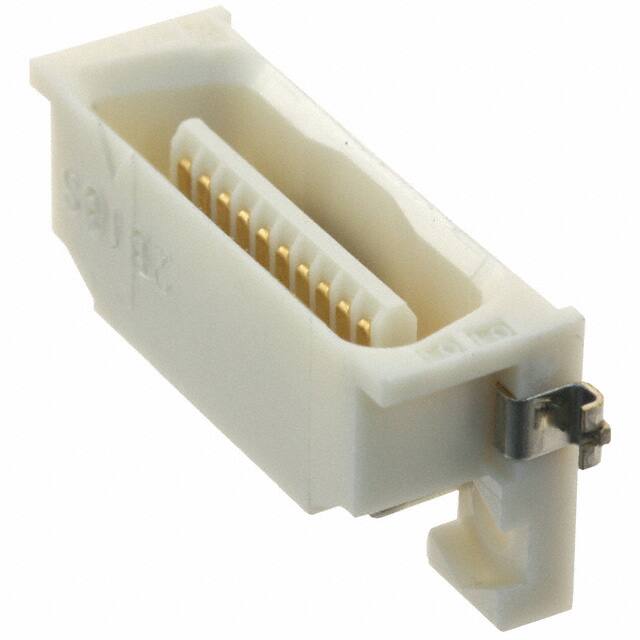

FX2-20P-0.635SH

Specifications

Housing Material

Plastic

Connector Style

Center Strip Contacts

Operating Temperature Max

85°C

Body Depth

0.441 inch

Reference Standard

UL

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Bodyshell Style

RECEPTACLE

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.05 inch

Contact Pattern

RECTANGULAR

Total Number Of Contacts

20

Housing Color

Brown

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

FX2

Din Conformance

NO

Contact Gender

MALE

Reliability

COMMERCIAL

Connector Type

Plug

Dielectric Withstanding Voltage

300VAC V

Sıra Sayısı

2

Mil Conformance

NO

Pozisyon Sayısı

20

Parça Durumu

Obsolete

Terminal

Solder

Option

GENERAL PURPOSE

Additional Feature

POLARIZED

Number Of Pcb Rows

1

Filter Feature

NO

Insulation Resistance

1000000000Ohm

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Flammability Rating

UL94 V-0

RoHS Durumu

Non-RoHS Compliant

Operating Temperature Min

-55°C

Contact Finish

Gold
