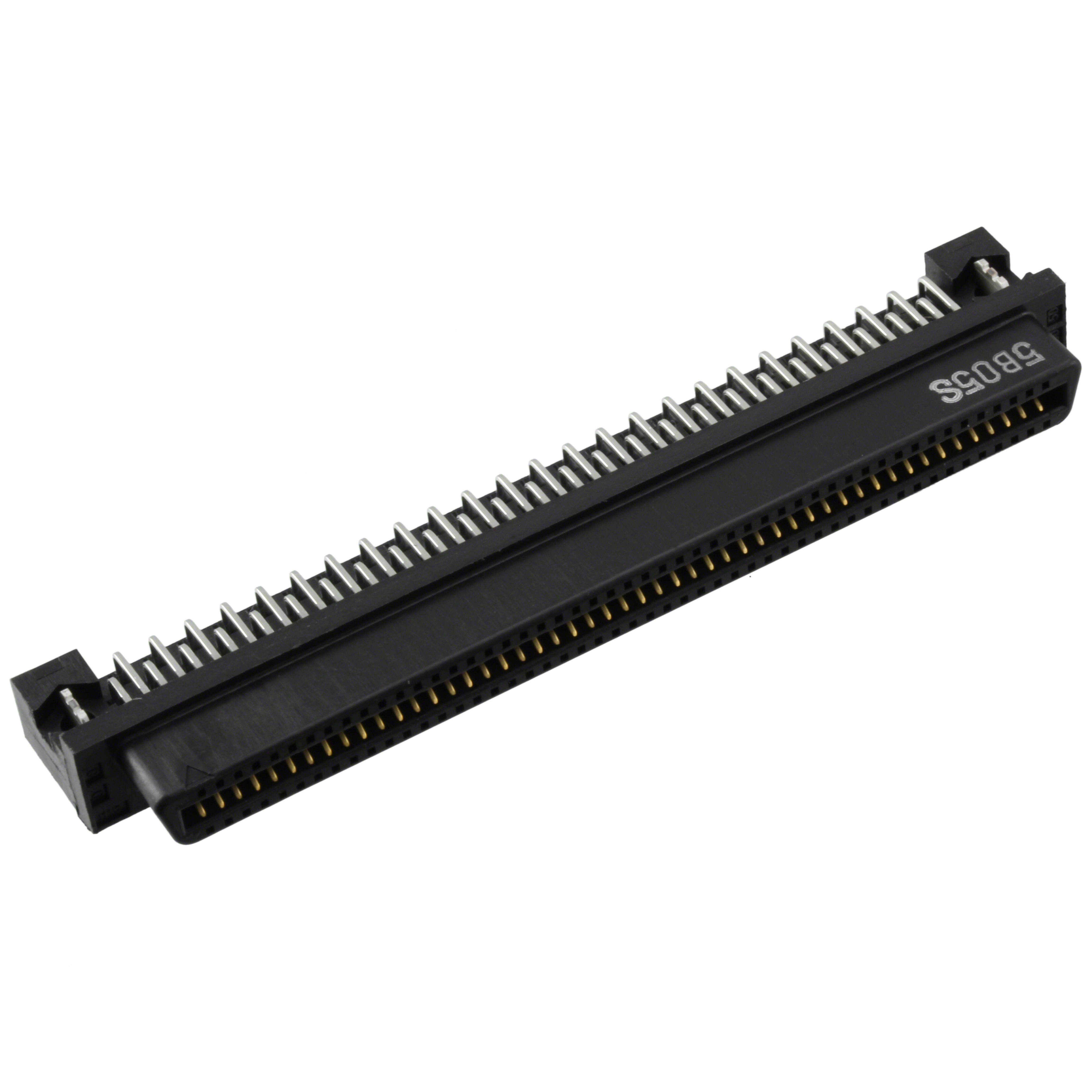

FX2-100S-1.27SV

Specifications

Connector Type

Receptacle

Contact Gender

FEMALE

Din Conformance

NO

Reliability

COMMERCIAL

Seri

FX2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Terminal

Solder

Pozisyon Sayısı

100

Sıra Sayısı

2

Contact Style

BELLOWED TYPE

Mil Conformance

NO

Dielectric Withstanding Voltage

300VAC V

Akım Değeri

500mA

Option

GENERAL PURPOSE

Iec Conformance

NO

Flammability Rating

UL94 V-0

Filter Feature

NO

Voltage Rated Ac

125V

Additional Feature

POLARIZED

Number Of Pcb Rows

2

Contact Finish

Gold

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Montaj Tipi

Surface Mount

Rated Current Signal

0.5A

Contact Materials

Bronze

Kurşunsuz

Contains Lead

Connector Style

Outer Shroud Contacts

Housing Material

PBT

Pitch

1.27mm

Operating Temperature Max

85°C

Body Depth

0.146 inch

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Total Number Of Contacts

100

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm
