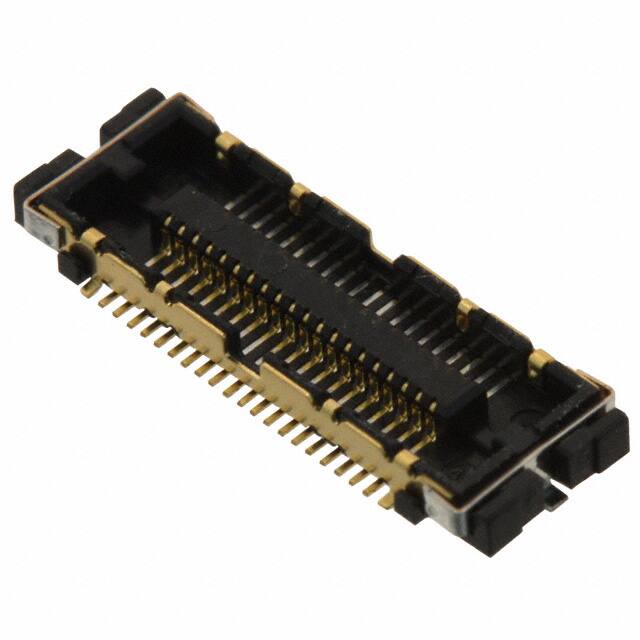

FX12B-40P-0.4SV

Specifications

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

40

Insulation Materials

POLYAMIDE

Mounting Option2

LOCKING

Contact Finish Thickness

3.94μin 0.10μm

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Mounting Option1

GUIDE SLOT

Din Conformance

NO

Durability

30 Cycles

Stack Height Mating

1.5mm

Mil Conformance

NO

Insulator Color

BLACK

JESD-609 Kodu

e3

Pitch

0.016 0.40mm

Option

GENERAL PURPOSE

Insulation Resistance

50000000Ohm

Contact Materials

COPPER ALLOY

Polarization Key

POLARIZED HOUSING

Dielectric Withstanding Voltage

100VAC V

Connector Type

Plug, Center Strip Contacts

Operating Temperature Min

-55°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Özellikler

Solder Retention

Number Of Pcb Rows

2

Reference Standard

UL

Contact Resistance

100mOhm

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Mixed Contacts

NO

Filter Feature

NO

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Contact Gender

MALE

Kurşunsuz Kodu

yes

Contact Finish

Gold

Parça Durumu

Active

Reliability

COMMERCIAL
