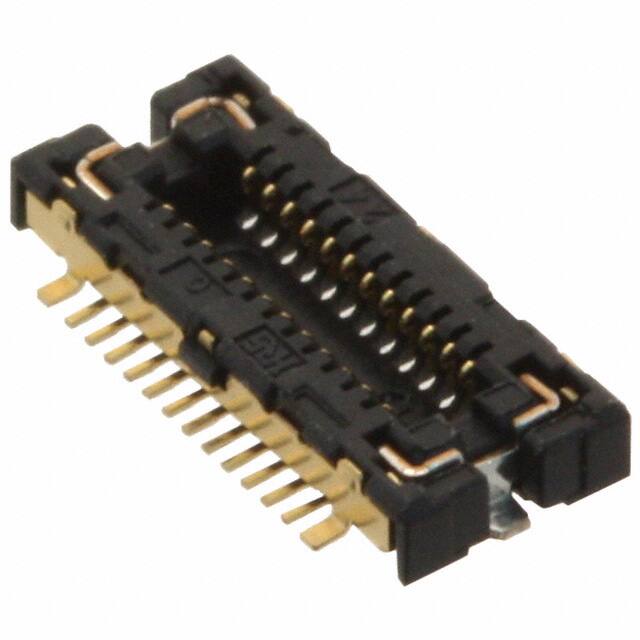

FX12B-24P-0.4SV

Specifications

Insulation Materials

POLYAMIDE

Pozisyon Sayısı

24

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness

3.94μin 0.10μm

Mounting Option2

LOCKING

Mounting Option1

GUIDE SLOT

Din Conformance

NO

Durability

30 Cycles

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Insulator Color

BLACK

Stack Height Mating

1.5mm

Option

GENERAL PURPOSE

Pitch

0.016 0.40mm

Contact Materials

COPPER ALLOY

Insulation Resistance

50000000Ohm

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

100VAC V

Polarization Key

POLARIZED HOUSING

Operating Temperature Min

-55°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Plug, Center Strip Contacts

Özellikler

Solder Retention

Ul Flammability Code

94V-0

Reference Standard

UL

Number Of Pcb Rows

2

Mixed Contacts

NO

Filter Feature

NO

Contact Resistance

100mOhm

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Contact Finish

Gold

Kurşunsuz Kodu

yes

Contact Gender

MALE

Reliability

COMMERCIAL

Parça Durumu

Active
