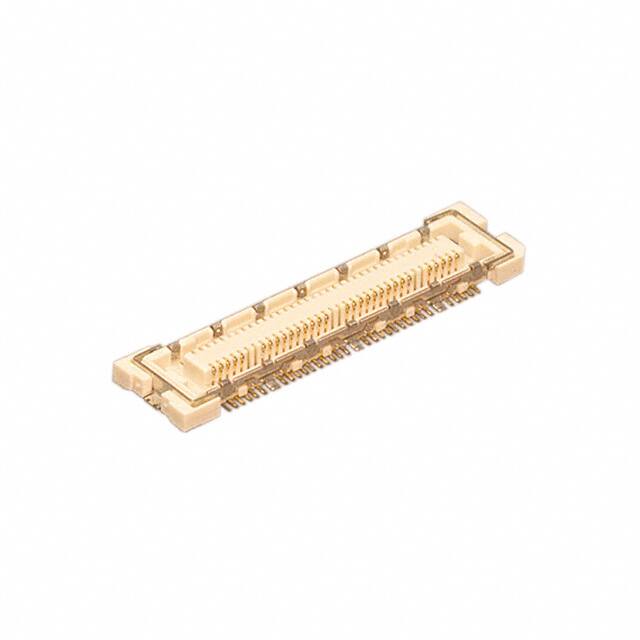

FX11LA-60S/6-SV(71)

Specifications

Terminal

SMD/SMT

Reference Standard

UL

Mixed Contacts

NO

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Akım Değeri

300mA

Parça Durumu

Active

Operating Temperature Max

85°C

Rated Current Signal

0.3A

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

60

Contact Finish Thickness

3.94μin 0.10μm

HTS Kodu

8536.69.40.40

Lead Pitch

500μm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE

Pitch

0.020 0.50mm

Contact Materials

Bronze

Insulation Resistance

100000000Ohm

Dielectric Withstanding Voltage

150VAC V

Number Of Contacts

66

Polarization Key

POLARIZED HOUSING

Housing Material

Polymer

Connector Type

Receptacle, Center Strip Contacts

Özellikler

Board Guide, Ground Plate, Solder Retention

Ul Flammability Code

94V-0

Number Of Pcb Rows

2

Additional Feature

LOW PROFILE

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99

Contact Finish

Gold

Yayın Yılı

2008

Reliability

COMMERCIAL

Housing Color

Beige
