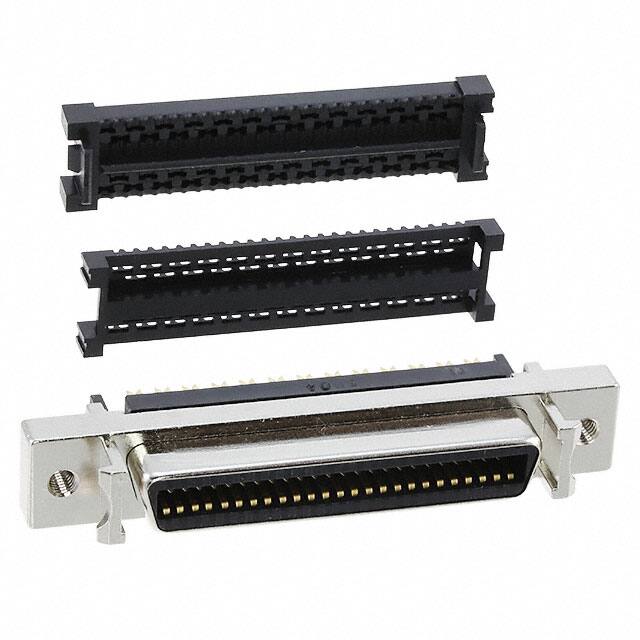

DX33AM-50S(50)

Specifications

Total Number Of Contacts

50

Connector Style

Outer Shroud Contacts

Voltage Rated Ac

125V

Terminal

IDC

Pitch

1.27mm

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Empty Shell

NO

Sıra Sayısı

2

Number Of Ports

1

Montaj Tipi

Panel Mount

Akım Değeri

500mA

Mil Conformance

NO

Parça Durumu

Active

JESD-609 Kodu

e4

Flammability Rating

UL94 V-0

Maks. Çalışma Sıcaklığı

85°C

Tip

Miniature High Density (HD)

Iec Conformance

NO

Option

GENERAL PURPOSE

Shell Finish

NICKEL

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ul Flammability Code

94V-0

Contact Materials

COPPER ALLOY

Seri

DXM

Shell Material

STEEL

Min. Çalışma Sıcaklığı

-55°C

Flange Feature

Mating Side (M2.6); Latchblocks

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Insulation Resistance

250MOhm

Housing Material

Zinc

Gender

Female

Contact Finish

Gold

Insulation Materials

PBT

Contact Finish Thickness

11.8μin 0.30μm
