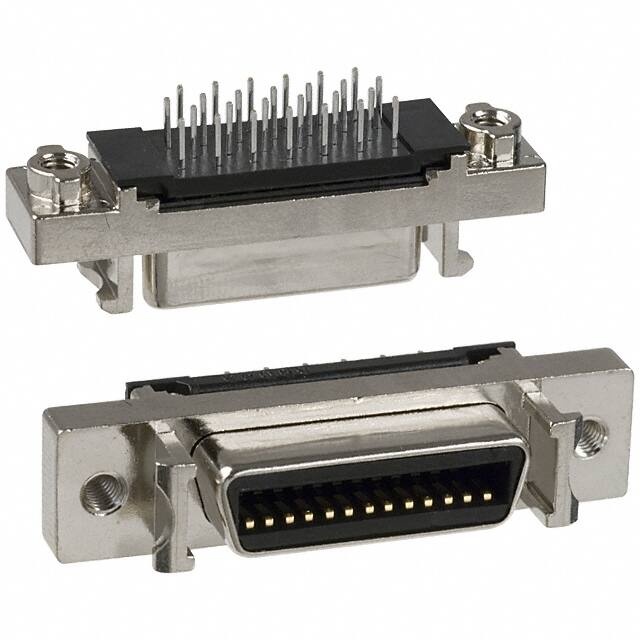

DX20M-26S

Specifications

Din Conformance

NO

Additional Feature

ONE TOUCH LOCK TYPE

Contact Materials

COPPER ALLOY

Terminal

Solder

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

300VAC V

Contact Finish

Gold

RoHS Durumu

Non-RoHS Compliant

Option

GENERAL PURPOSE

Tip

Miniature High Density (HD)

Housing Color

Black

Contact Resistance

35mOhm

Connector Style

Outer Shroud Contacts

Akım Değeri

500mA

Voltage Rated Ac

125V

Reliability

COMMERCIAL

Rated Current Signal

0.5A

Body Length Or Diameter

1.463 inch

Yayın Yılı

2005

Contact Style

BELLOWED TYPE

Gender

Female

Pcb Contact Pattern

STAGGERED

Housing Material

Steel

REACH Uyumluluk Kodu

unknown

Montaj

Panel, Through Hole

Ul Flammability Code

94V-0

Number Of Pcb Rows

4

Ambalaj

Bulk

Montaj Tipi

Panel Mount, Through Hole

Flange Feature

Housing/Shell (M2.6)

Pitch

2.54mm

Empty Shell

NO

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Pozisyon Sayısı

26

Reference Standard

UL

Kurşunsuz

Contains Lead

Mixed Contacts

NO

Seri

DXM

Parça Durumu

Obsolete
