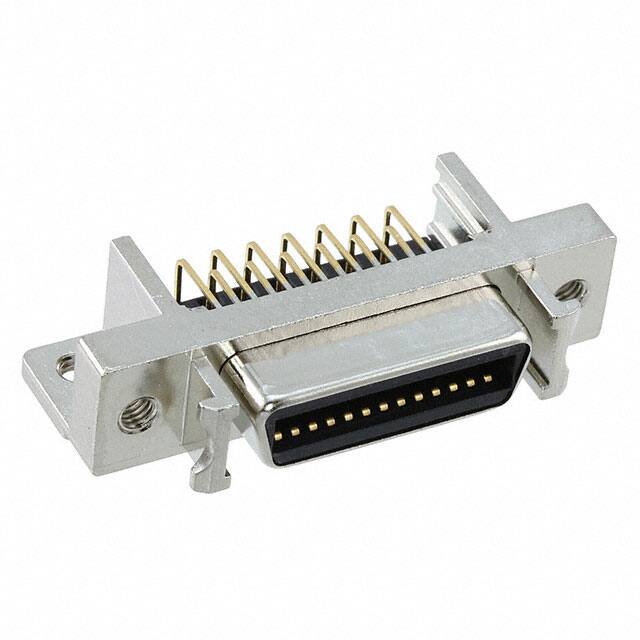

DX10M-26S(50)

Specifications

Shell Material

STEEL

Mounting Option2

SCREW

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Contact Finish Thickness

11.8μin 0.30μm

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Flange Feature

Housing/Shell (M2.6)

Terminal

Solder

Number Of Pcb Rows

4

Contact Materials

COPPER ALLOY

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

26

Contact Finish

Gold

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Connector Style

Outer Shroud Contacts

Seri

DXM

Parça Durumu

Active

Contact Resistance

35mOhm

Tip

Miniature High Density (HD)

Reference Standard

UL

Body Breadth

0.354 inch

Pcb Contact Row Spacing

1.905 mm

Insulator Color

BLACK

Total Number Of Contacts

26

Connector Type

Receptacle

Yayın Yılı

2012

Shell Finish

NICKEL

Rated Current Signal

0.5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

1.463 inch

Length Termination

0.154 inch

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

MALE

REACH Uyumluluk Kodu

unknown

Mating Contact Pitch

0.05 inch

Pcb Contact Pattern

STAGGERED
