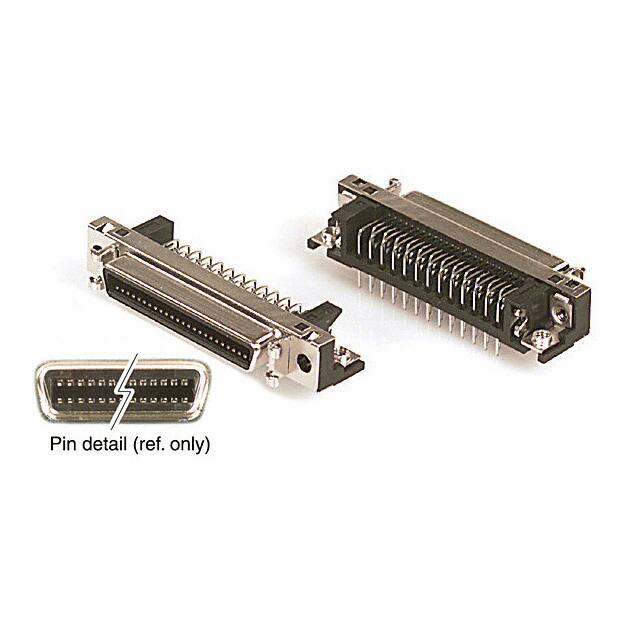

DX10G1M-50S

Specifications

Kurşunsuz

Contains Lead

Mixed Contacts

NO

Seri

DXM

Parça Durumu

Obsolete

Reference Standard

UL

Empty Shell

NO

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Pozisyon Sayısı

50

Ambalaj

Bulk

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Flange Feature

Housing/Shell (M2.6)

Number Of Pcb Rows

4

Montaj

Panel, Through Hole

Ul Flammability Code

94V-0

Operating Temperature Max

85°C

Mating Contact Pitch

0.05 inch

Contact Gender

FEMALE

Total Number Of Contacts

50

Connector Type

Receptacle

Mil Conformance

NO

Shell Finish

NICKEL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.154 inch

Body Breadth

0.366 inch

Filter Feature

NO

Pcb Contact Row Spacing

1.905 mm

Iec Conformance

NO

JESD-609 Kodu

e4

Housing Color

Black

Contact Resistance

35mOhm

Connector Style

Outer Shroud Contacts

Tip

Miniature High Density (HD)

RoHS Durumu

Non-RoHS Compliant

Option

GENERAL PURPOSE

Contact Finish

Gold

Terminal

Solder

Dielectric Withstanding Voltage

400VAC V

Flammability Rating

UL94 V-0

Contact Materials

COPPER ALLOY
