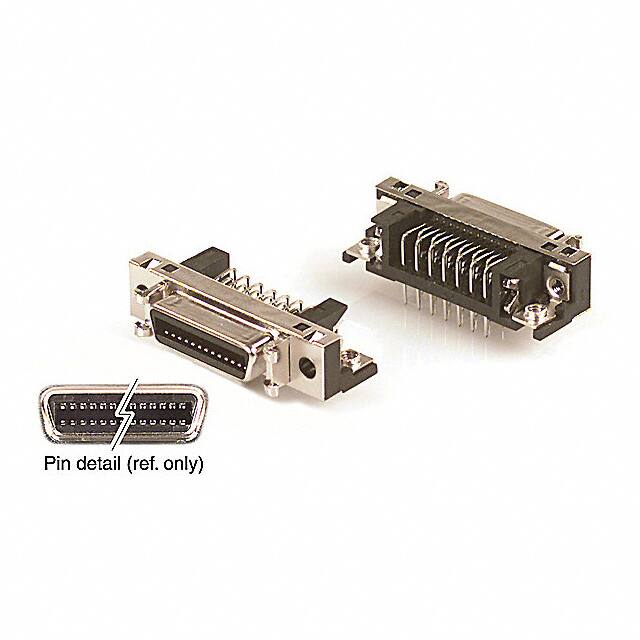

DX10G1M-26S

Specifications

Contact Gender

FEMALE

Mating Contact Pitch

0.05 inch

JESD-609 Kodu

e4

Iec Conformance

NO

Pcb Contact Row Spacing

1.905 mm

Filter Feature

NO

Body Breadth

0.366 inch

Shell Finish

NICKEL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.154 inch

Mil Conformance

NO

Connector Type

Receptacle

Total Number Of Contacts

26

ECCN Kodu

EAR99

Pozisyon Sayısı

26

Empty Shell

NO

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Reference Standard

UL

Seri

DXM

Parça Durumu

Obsolete

Kurşunsuz

Contains Lead

Mixed Contacts

NO

Ul Flammability Code

94V-0

Operating Temperature Max

85°C

Montaj

Panel, Through Hole

Number Of Pcb Rows

4

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Ambalaj

Bulk

Flange Feature

Housing/Shell (M2.6)

Contact Style

RND PIN-SKT

Pcb Contact Pattern

STAGGERED

Housing Material

Plastic

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-55°C

Body Depth

0.453 inch

Rated Current Signal

0.5A

Body Length Or Diameter

1.463 inch

Reliability

COMMERCIAL

Yayın Yılı

2005
