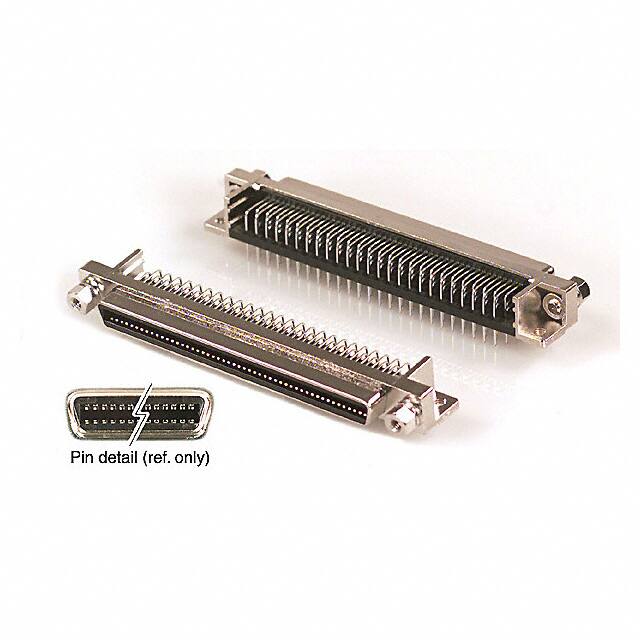

DX10AM-100SE1

Specifications

Connector Type

Receptacle

Total Number Of Contacts

100

Length Termination

0.134 inch

Shell Finish

NICKEL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Body Breadth

0.366 inch

Filter Feature

NO

JESD-609 Kodu

e4

Iec Conformance

NO

Pcb Contact Row Spacing

1.905 mm

Özellikler

Board Lock

Mating Contact Pitch

0.05 inch

Flange Feature

Mating Side, Female Screwlock (M2.6)

Ambalaj

Bulk

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Number Of Pcb Rows

4

Ul Flammability Code

94V-0

Montaj

Panel, Through Hole

Parça Durumu

Obsolete

Seri

DXM

Mixed Contacts

NO

Kurşunsuz

Contains Lead

Reference Standard

UL

Pozisyon Sayısı

100

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Empty Shell

NO

Body Length Or Diameter

3.313 inch

Rated Current Signal

0.5A

Reliability

COMMERCIAL

Body Depth

0.453 inch

REACH Uyumluluk Kodu

unknown

Housing Material

Plastic

Pcb Contact Pattern

STAGGERED

Contact Style

BELLOWED TYPE

Dielectric Withstanding Voltage

300VAC V

Terminal

Solder

Contact Materials

COPPER ALLOY

Shell Material

STEEL
