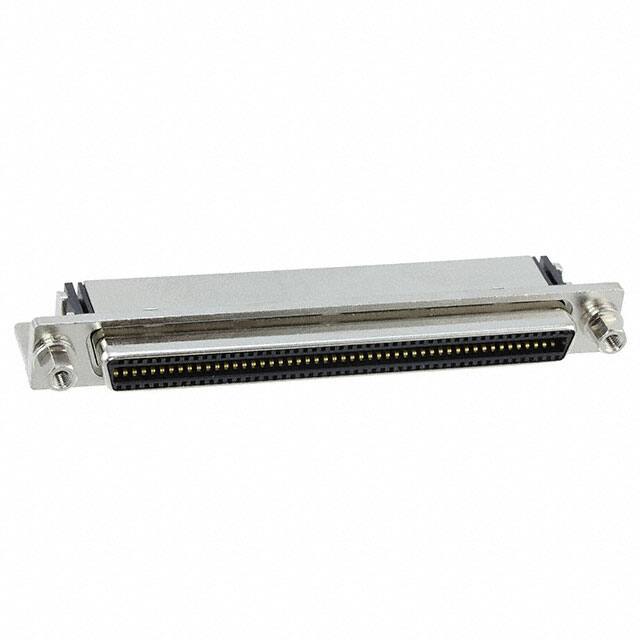

DX10A-100S(50)

Specifications

Insulation Resistance

250000000Ohm

Number Of Ports

1

Contact Style

SQ PIN-SKT

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Contact Plating

Gold

Pcb Contact Pattern

STAGGERED

Uzunluk

84.2mm

Operating Temperature Min

-55°C

Contact Finish Mating

AU

Orientation

Right Angle

Insulator Color

BLACK

Total Number Of Contacts

100

Connector Type

TELECOM AND DATACOM CONNECTOR

Yayın Yılı

2012

Shell Finish

SILVER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rated Current Signal

0.5A

Max Voltage Rating Ac

125V

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Max Current Rating

500mA

RoHS Durumu

RoHS Compliant

Depth

18.3mm

Sıra Sayısı

2

Terminal Sayısı

100

Contact Pattern

RECTANGULAR

Parça Durumu

Active

Contact Resistance

50mOhm

Bodyshell Style

RECEPTACLE

Reference Standard

UL

Shell Material

ZINC

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Operating Temperature Max

85°C

Montaj

Through Hole

Dielectric Withstanding Voltage

424VAC V

Pitch

2.54mm

Terminal

Solder

Number Of Pcb Rows

4

Contact Materials

COPPER ALLOY
