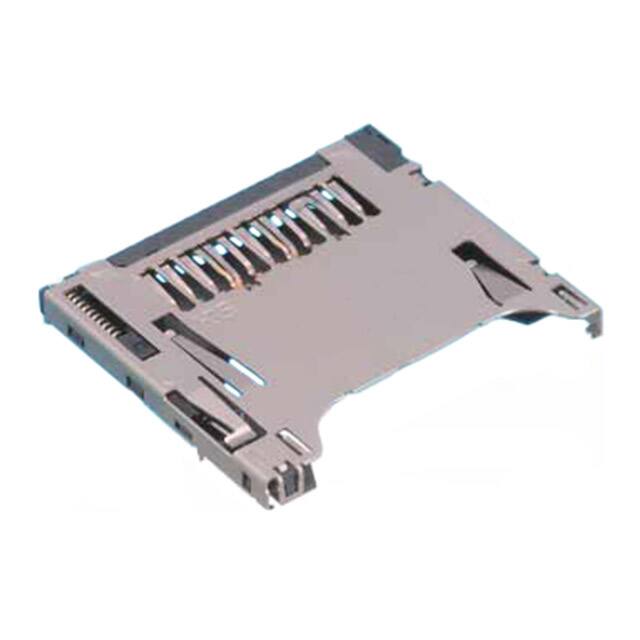

DM2B-DSFW-PEJ-D1S(21)

Specifications

Contact Pattern

RECTANGULAR

Contact Finish Thickness

3.94μin 0.10μm

Contact Style

BELLOWED TYPE

Kılıf / Paket

SMD/SMT

Contact Resistance

100mOhm

Ambalaj

Reel

Card Type

Secure Digital - miniSD™

Montaj

Surface Mount, Through Hole

Insulation Materials

THERMOPLASTIC

Montaj Tipi

Surface Mount, Right Angle; Through Hole

Insulation Resistance

1000000000Ohm

Durability

10000 Cycles

Seri

DM2

Mating Contact Pitch

0.051 inch

Number Of Conductors

ONE

Rated Current Signal

0.5A

Insulator Color

BLACK

Number Of Pcb Rows

1

Reference Standard

UL

Contact Gender

FEMALE

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

500VAC V

Pozisyon Sayısı

13 (11 + 2)

Total Number Of Contacts

11

Reliability

COMMERCIAL

Yayın Yılı

2008

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

PHOSPHOR BRONZE

Mounting Feature

Reverse - Bottom

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.087 inch

Bodyshell Style

RECEPTACLE

Özellikler

Switch

Insertion Removal Method

Push In, Push Out

Number Of Ports

1

Body Length Or Diameter

0.917 inch

Sıra Sayısı

1

Parça Durumu

Obsolete

Contact Finish

Gold

Connector Type

Connector and Ejector
