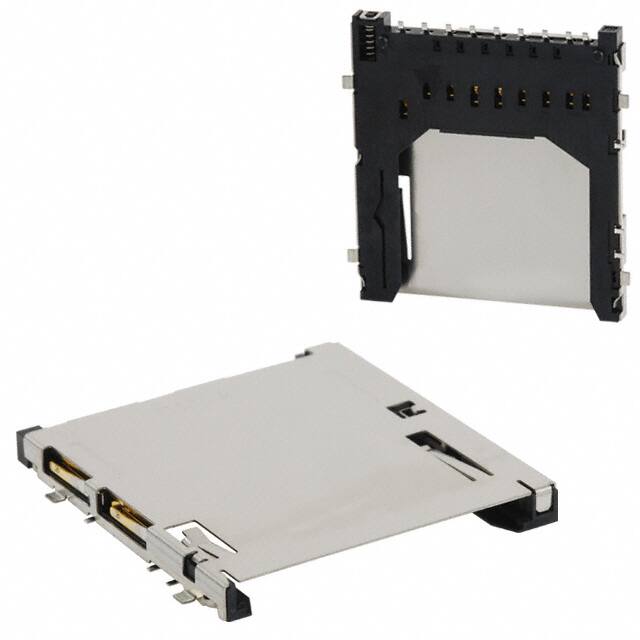

DM1AA-SF-PEJ(22)

Specifications

Operating Temperature Min

-25°C

Height Above Board

0.114 2.90mm

REACH Uyumluluk Kodu

unknown

Operating Temperature Max

85°C

Terminal Adımı

2.4892mm

Connector Type

Connector and Ejector

Contact Finish

Gold

Body Depth

1.201 inch

Body Length Or Diameter

1.181 inch

Sıra Sayısı

1

Parça Durumu

Active

Number Of Ports

1

Özellikler

Board Guide, Switch

Insertion Removal Method

Push In, Push Out

Bodyshell Style

RECEPTACLE

Body Breadth

0.114 inch

Mounting Feature

Normal, Standard - Top

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2015

Contact Materials

PHOSPHOR BRONZE

Total Number Of Contacts

9

Pozisyon Sayısı

12 (9 + 3)

Fabrika Tedarik Süresi

12 Weeks

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

500VAC V

RoHS Durumu

RoHS Compliant

Contact Gender

MALE

Reference Standard

UL

Insulator Color

BLACK

Number Of Pcb Rows

1

Rated Current Signal

0.5A

Number Of Conductors

ONE

Mating Contact Pitch

0.098 inch

Seri

DM1

Insulation Resistance

1000000000Ohm

Durability

10000 Cycles

Montaj Tipi

Surface Mount, Right Angle

Insulation Materials

THERMOPLASTIC

Montaj

Surface Mount
