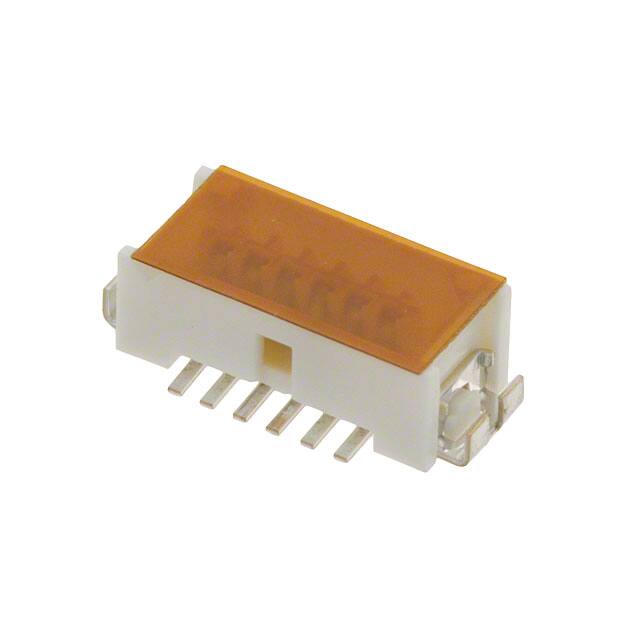

DF9B-11S-1V(32)

Specifications

JESD-609 Kodu

e3

Iec Conformance

NO

Özellikler

Solder Retention

Filter Feature

NO

Body Breadth

0.165 inch

Nominal Gerilim

150V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Connector Type

Receptacle, Outer Shroud Contacts

Total Number Of Contacts

11

ECCN Kodu

EAR99

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Ul Flammability Code

94V-0

Montaj

Surface Mount

Number Of Pcb Rows

2

Pitch

0.039 1.00mm

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

11

Contact Pattern

STAGGERED

Sıra Sayısı

2

Lead Pitch

1mm

Reference Standard

UL

Seri

DF9

Parça Durumu

Active

Kurşunsuz

Lead Free

Mixed Contacts

NO

Operating Temperature Min

-45°C

Durability

30 Cycles

Akım Değeri

500mA

Body Depth

0.13 inch

Rated Current Signal

0.5A

Body Length Or Diameter

0.437 inch

Reliability

COMMERCIAL

Yayın Yılı

2003

Contact Style

BELLOWED TYPE
