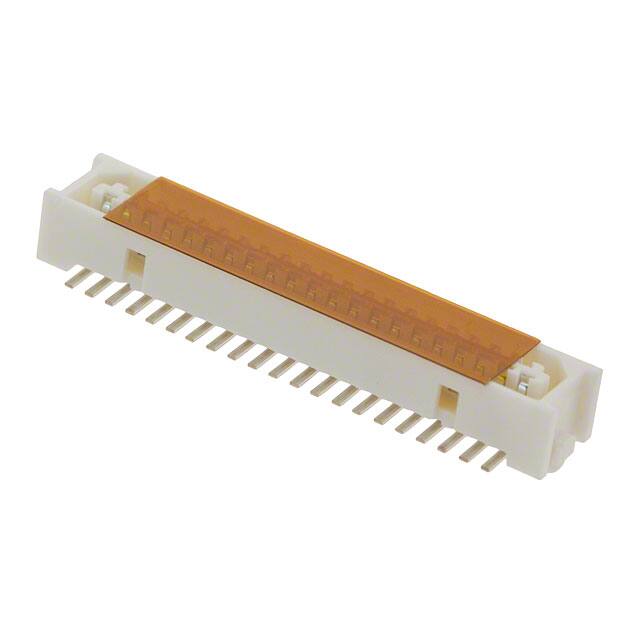

DF9A-41P-1V(22)

Specifications

Height Above Board

0.130 3.30mm

Housing Material

Polyamide

Pcb Contact Pattern

STAGGERED

Maks. Çalışma Sıcaklığı

125°C

Gender

Male

Yayın Yılı

2003

Reliability

COMMERCIAL

Body Length Or Diameter

0.957 inch

Rated Current Signal

0.5A

Body Depth

0.13 inch

Akım Değeri

500mA

Durability

30 Cycles

Contact Resistance

50mOhm

Housing Color

Beige

Kurşunsuz Kodu

yes

Min. Çalışma Sıcaklığı

-45°C

RoHS Durumu

RoHS Compliant

Option

GENERAL PURPOSE

Stack Height Mating

4.3mm

Contact Finish

Tin

Terminal

Solder

Flammability Rating

UL94 V-0

Contact Materials

Copper

Additional Feature

POLARIZED

HTS Kodu

8536.69.40.40

Din Conformance

NO

Insulation Resistance

500MOhm

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Number Of Conductors

ONE

Total Number Of Contacts

41

Connector Type

Header, Center Strip Contacts

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

150V

Filter Feature

NO

Body Breadth

0.165 inch

Özellikler

Board Guide

Pcb Contact Row Spacing

4.4958 mm
