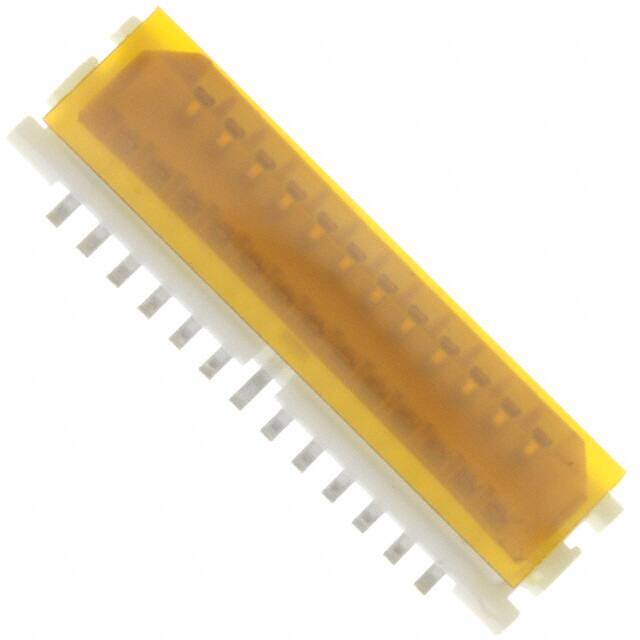

DF9A-25P-1V(22)

Specifications

Maks. Çalışma Sıcaklığı

125°C

Pcb Contact Pattern

STAGGERED

Housing Material

Polyamide

Height Above Board

0.130 3.30mm

REACH Uyumluluk Kodu

unknown

Durability

30 Cycles

Akım Değeri

500mA

Body Depth

0.13 inch

Rated Current Signal

0.5A

Reliability

COMMERCIAL

Yayın Yılı

2003

Contact Finish

Tin

Stack Height Mating

4.3mm

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-45°C

Kurşunsuz Kodu

yes

Housing Color

Beige

Contact Resistance

50mOhm

Din Conformance

NO

Additional Feature

POLARIZED

Contact Materials

Copper

Flammability Rating

UL94 V-0

Terminal

SMD/SMT

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

MALE

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500MOhm

Iec Conformance

NO

JESD-609 Kodu

e3

Pcb Contact Row Spacing

3.9116 mm

Özellikler

Board Guide

Body Breadth

0.165 inch

Filter Feature

NO

Nominal Gerilim

150V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Total Number Of Contacts

25

Connector Type

Header, Center Strip Contacts

Number Of Conductors

ONE
