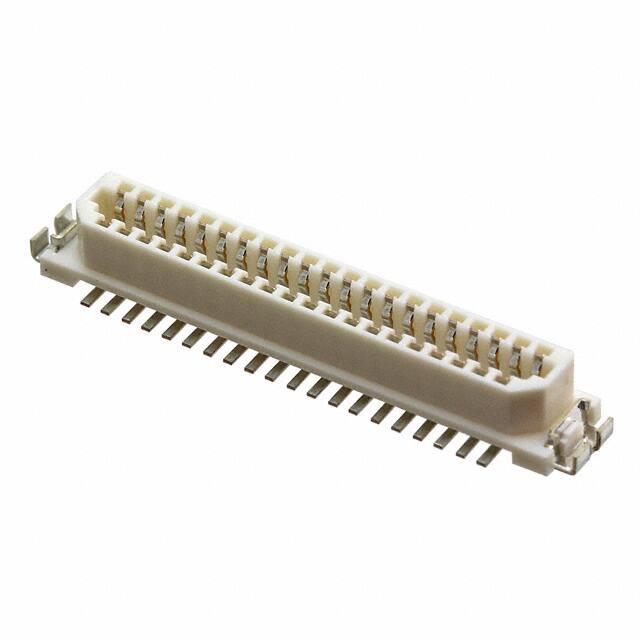

DF9-41S-1V(32)

Specifications

Ul Flammability Code

94V-0

Montaj

Surface Mount

Number Of Pcb Rows

2

Pitch

0.039 1.00mm

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

41

Contact Pattern

STAGGERED

Sıra Sayısı

2

Radyasyon Dayanımı

No

Lead Pitch

1mm

Reference Standard

UL

Parça Durumu

Active

Seri

DF9

Mixed Contacts

NO

Kurşunsuz

Lead Free

JESD-609 Kodu

e3

Iec Conformance

NO

Özellikler

Board Guide, Solder Retention

Orientation

Straight

Nominal Gerilim

150V

Filter Feature

NO

Body Breadth

0.165 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Connector Type

Receptacle, Outer Shroud Contacts

Total Number Of Contacts

41

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Insulation Resistance

500000000Ohm

Din Conformance

NO

Additional Feature

POLARIZED

Contact Materials

Bronze, Copper

Flammability Rating

UL94 V-0

Contact Finish Thickness

39.4μin 1.00μm

Terminal

SMD/SMT

Contact Finish

Tin

Stack Height Mating

4.3mm
