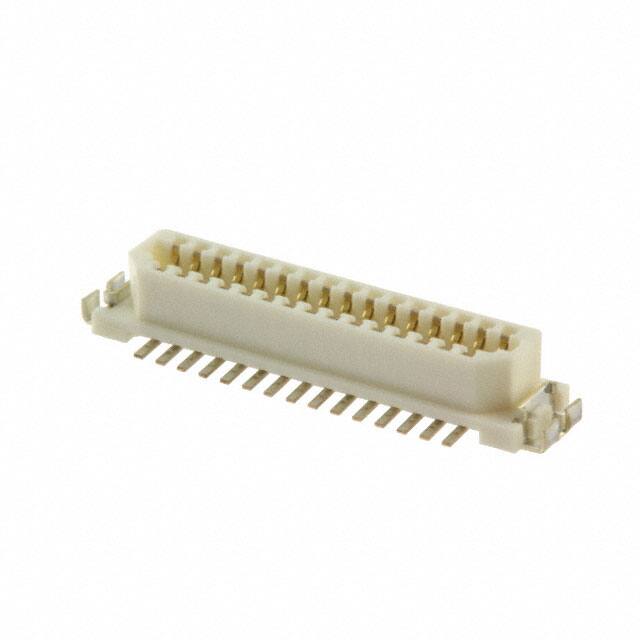

DF9-31S-1V(69)

Specifications

Akım Değeri

500mA

Body Depth

0.13 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Durability

100 Cycles

Operating Temperature Min

-45°C

Yayın Yılı

2003

Rated Current Signal

0.5A

Reliability

COMMERCIAL

Gender

Receptacle

Contact Style

BELLOWED TYPE

Housing Material

Polyamide

Pcb Contact Pattern

STAGGERED

Height Above Board

0.130 3.30mm

Additional Feature

POLARIZED

Din Conformance

NO

Flammability Rating

UL94 V-0

Contact Finish Thickness

3.94μin 0.10μm

Terminal

SMD/SMT

Contact Materials

Bronze, Copper

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Row Spacing

5.6 mm

Contact Finish

Gold

Stack Height Mating

4.3mm

Contact Resistance

50mOhm

Kurşunsuz Kodu

yes

Housing Color

Beige

Nominal Gerilim

150V

Body Breadth

0.165 inch

Filter Feature

NO

JESD-609 Kodu

e3

Iec Conformance

NO

Özellikler

Board Guide, Solder Retention

Orientation

Straight

Connector Type

Receptacle, Outer Shroud Contacts

Total Number Of Contacts

31

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING
