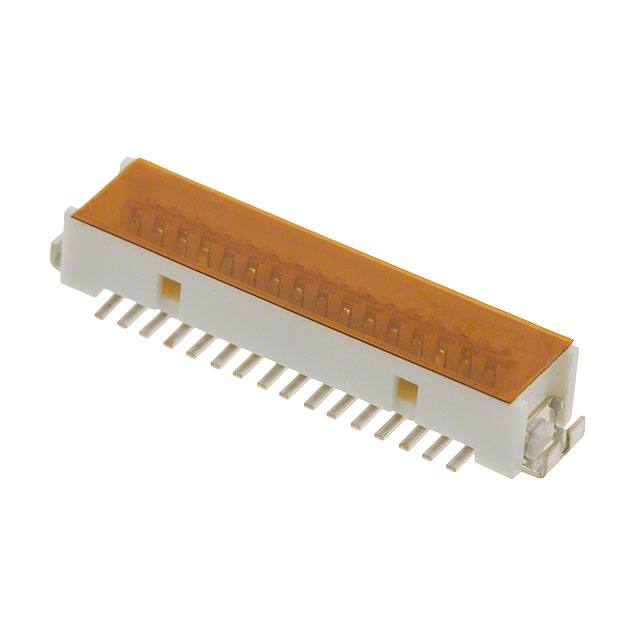

DF9-31S-1V(32)

Specifications

Reach Svhc

No SVHC

Insulation Resistance

500000000Ohm

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

12 Weeks

Nominal Gerilim

150V

Body Breadth

0.165 inch

Filter Feature

NO

Özellikler

Board Guide, Solder Retention

Orientation

Straight

JESD-609 Kodu

e3

Iec Conformance

NO

Number Of Conductors

ONE

Connector Type

Receptacle, Outer Shroud Contacts

Total Number Of Contacts

31

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Contact Pattern

STAGGERED

Sıra Sayısı

2

Pozisyon Sayısı

31

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

DF9

Reference Standard

UL

Lead Pitch

1mm

Montaj

Surface Mount

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Pitch

0.039 1.00mm

Number Of Pcb Rows

2

Gender

Receptacle

Height Above Board

0.130 3.30mm

Housing Material

Polyamide

Pcb Contact Pattern

STAGGERED

Body Depth

0.13 inch

Akım Değeri

500mA

Durability

30 Cycles

Operating Temperature Min

-45°C
