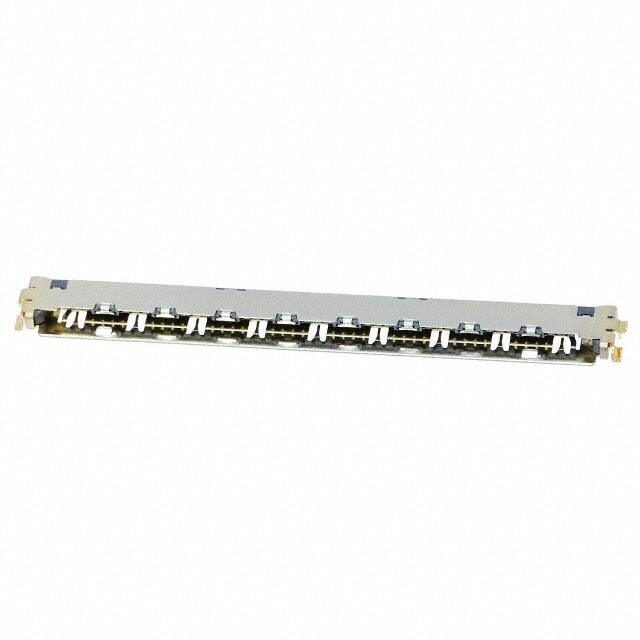

DF81-50S-0.4H(52)

Specifications

Insulation Color

Black

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

1

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Positions Loaded

All

Montaj

Surface Mount

Parça Durumu

Active

Seri

DF81

Contact Resistance

80mOhm

Current Rating Amps

0.3A

Style

Board to Cable/Wire

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

50

Sıra Sayısı

1

Total Number Of Contacts

50

Connector Type

Receptacle

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Thickness Mating

3.90μin 0.099μm

Reliability

COMMERCIAL

Pitch Mating

0.016 0.40mm

Nominal Gerilim

100V

Insulation Height

0.035 0.90mm

Body Breadth

0.035 inch

Durability

30 Cycles

Contact Type

Center Strip Contact

Fastening Type

Latch Holder

Özellikler

Grounding Tab, Shielded

Contact Finish Mating

Gold

Terminal Adımı

0.4064mm

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Post

2.00μin 0.051μm
