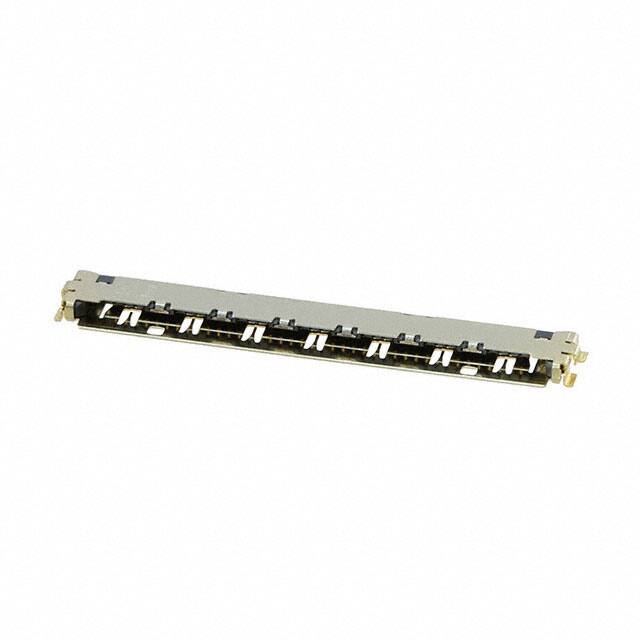

DF81-40S-0.4H(52)

Specifications

Body Breadth

0.035 inch

Insulation Height

0.035 0.90mm

Nominal Gerilim

100V

Pitch Mating

0.016 0.40mm

Contact Finish Mating

Gold

Fastening Type

Latch Holder

Özellikler

Grounding Tab, Shielded

Contact Type

Center Strip Contact

Durability

30 Cycles

Number Of Conductors

ONE

Total Number Of Contacts

40

Connector Type

Receptacle

Contact Finish Thickness Mating

3.90μin 0.099μm

Çalışma Sıcaklığı

-35°C~85°C

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.794 inch

Insulation Resistance

50000000Ohm

Contact Finish Thickness Post

2.00μin 0.051μm

Polarization Key

POLARIZED HOUSING

Contact Gender

FEMALE

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Montaj

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Insulation Color

Black

Terminal

Solder

Dielectric Withstanding Voltage

250VAC V

Number Of Pcb Rows

1

Contact Materials

Phosphor Bronze

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Pozisyon Sayısı

40

Contact Resistance

80mOhm

Current Rating Amps

0.3A
