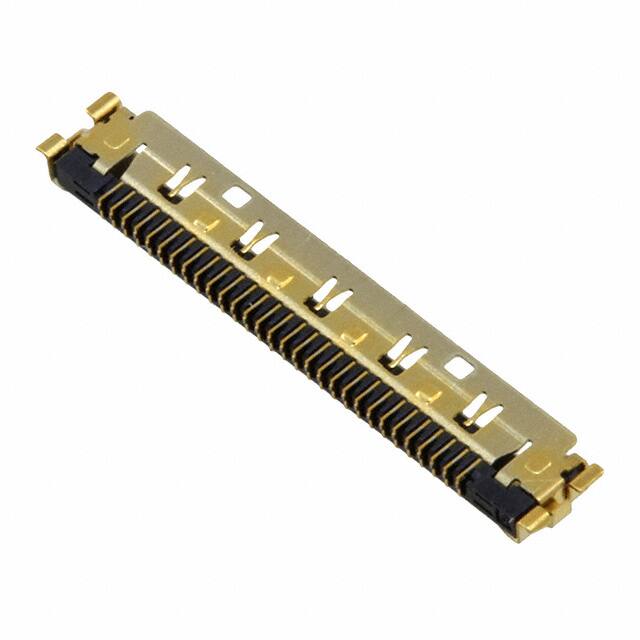

DF81-30S-0.4H(51)

Specifications

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Post

2.00μin 0.051μm

Insulation Resistance

50000000Ohm

Pcb Contact Pattern

RECTANGULAR

Terminal Adımı

0.4064mm

REACH Uyumluluk Kodu

unknown

Contact Type

Center Strip Contact

Özellikler

Grounding Tab, Shielded

Fastening Type

Latch Holder

Contact Finish Mating

Gold

Nominal Gerilim

100V

Pitch Mating

0.016 0.40mm

Insulation Height

0.035 0.90mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Thickness Mating

3.90μin 0.099μm

Total Number Of Contacts

30

Connector Type

Receptacle

Number Of Conductors

ONE

Pozisyon Sayısı

30

Sıra Sayısı

1

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Parça Durumu

Active

Seri

DF81

Contact Resistance

80mOhm

Style

Board to Cable/Wire

Current Rating Amps

0.3A

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

1

Dielectric Withstanding Voltage

250VAC V

Terminal

Solder

Insulation Color

Black
