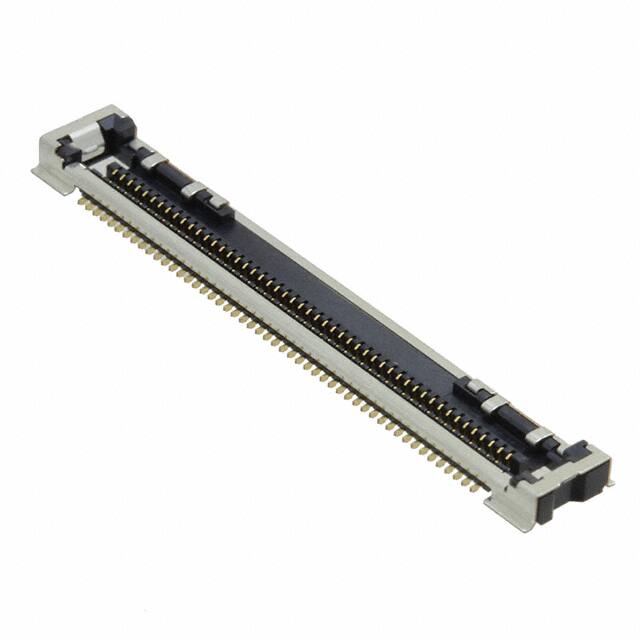

DF80-50S-0.5V(52)

Specifications

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.02 inch

Insulation Resistance

50MOhm

Contact Finish Thickness Post

1.97μin 0.050μm

Contact Gender

FEMALE

Number Of Conductors

ONE

ECCN Kodu

EAR99

Total Number Of Contacts

50

Connector Type

Receptacle

Contact Finish Thickness Mating

1.97μin 0.050μm

Çalışma Sıcaklığı

-35°C~85°C

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.065 inch

Insulation Height

0.065 1.65mm

Nominal Gerilim

50V

Pitch Mating

0.020 0.50mm

Contact Finish Mating

Gold

Özellikler

Solder Retention

Fastening Type

Friction Lock

Contact Type

Center Strip Contact

Durability

30 Cycles

Style

Board to Cable/Wire

Current Rating Amps

0.5A

Contact Resistance

80mOhm

Seri

DF80

Parça Durumu

Discontinued

Reference Standard

UL

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Pozisyon Sayısı

50

Ambalaj

Cut Tape (CT)

Montaj Tipi

Surface Mount

Insulation Color

Black

Terminal

Solder

Number Of Pcb Rows

1

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All
