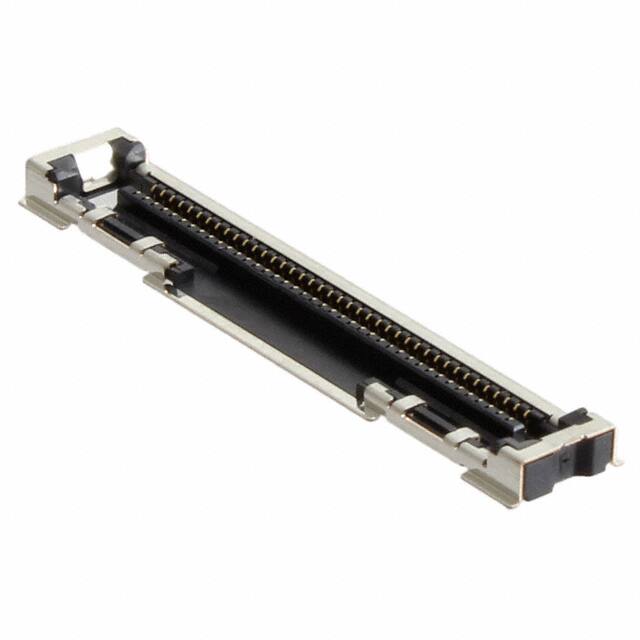

DF80-40S-0.5V(52)

Specifications

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Female

Contact Finish Thickness Post

1.97μin 0.050μm

Insulation Resistance

50MOhm

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.02 inch

Housing Material

Polymer

Terminal Adımı

0.508mm

REACH Uyumluluk Kodu

unknown

Contact Type

Center Strip Contact

Durability

30 Cycles

Contact Finish Mating

Gold

Fastening Type

Friction Lock

Özellikler

Solder Retention

Insulation Height

0.065 1.65mm

Body Breadth

0.065 inch

Pitch Mating

0.020 0.50mm

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

1.97μin 0.050μm

Çalışma Sıcaklığı

-35°C~85°C

Reliability

COMMERCIAL

Connector Type

Receptacle

Total Number Of Contacts

40

Number Of Conductors

ONE

ECCN Kodu

EAR99

Pozisyon Sayısı

40

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Seri

DF80

Parça Durumu

Active

Contact Resistance

80mOhm

Current Rating Amps

0.5A

Style

Board to Cable/Wire

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

Number Of Positions Loaded

All

Montaj

Surface Mount

Number Of Pcb Rows

1
