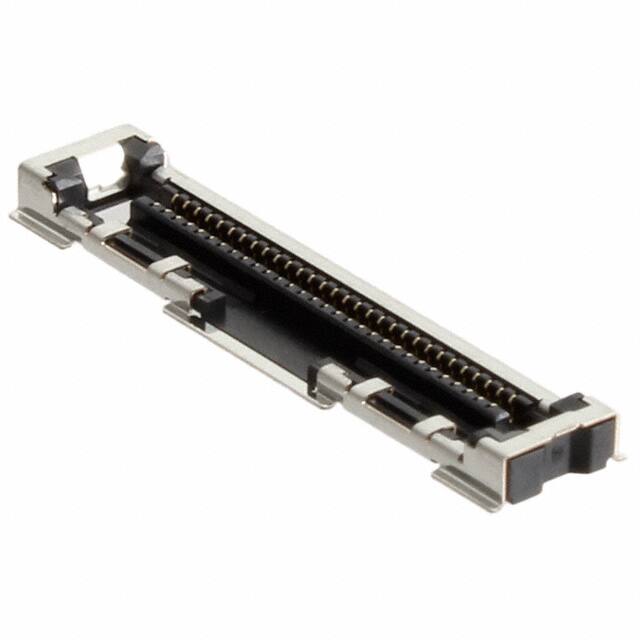

DF80-30S-0.5V(51)

Specifications

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

30

Sıra Sayısı

1

Parça Durumu

Active

Seri

DF80

Contact Resistance

80mOhm

Current Rating Amps

0.5A

Style

Board to Cable/Wire

Reference Standard

UL

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

HTS Kodu

8536.69.40.40

Number Of Positions Loaded

All

Montaj

Surface Mount

Insulation Color

Black

Terminal

Solder

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

1

Contact Finish Thickness Post

1.97μin 0.050μm

Insulation Resistance

50MOhm

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Terminal Adımı

0.508mm

REACH Uyumluluk Kodu

unknown

Mating Contact Pitch

0.02 inch

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

50V

Pitch Mating

0.020 0.50mm

Insulation Height

0.065 1.65mm

Contact Type

Center Strip Contact

Fastening Type

Friction Lock

Özellikler

Solder Retention

Contact Finish Mating

Gold

Connector Type

Receptacle

Total Number Of Contacts

30

ECCN Kodu

EAR99

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)
