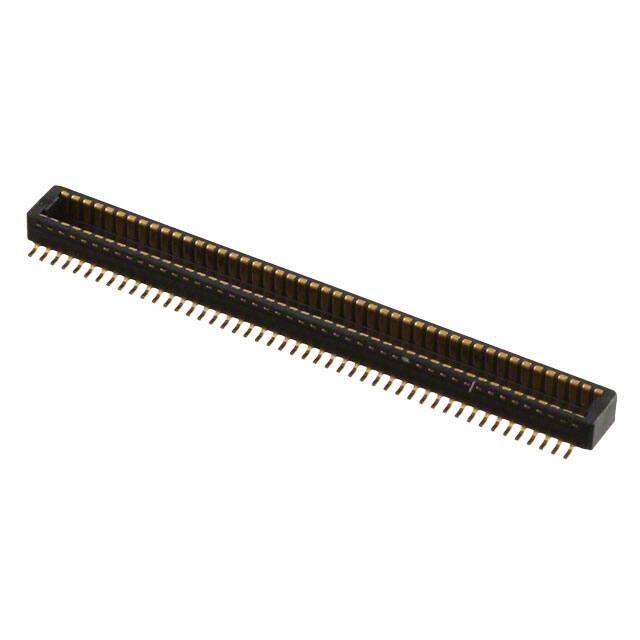

DF40C-90DP-0.4V(51)

Specifications

Seri

DF40

Yükseklik

1.29mm

Reference Standard

UL

Maks. Çalışma Sıcaklığı

85°C

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Montaj Tipi

Surface Mount

Contact Finish Thickness

2.00μin 0.051μm

Pozisyon Sayısı

90

Montaj

Surface Mount

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

90

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

100VAC V

Nominal Gerilim

30V

Durability

30 Cycles

Stack Height Mating

1.5mm 2mm 2.5mm 3mm 3.5mm 4mm

Parça Durumu

Active

Pitch

0.016 0.40mm

Contact Finish

Gold

Terminal

SMD/SMT

RoHS Durumu

RoHS Compliant

Akım Değeri

300mA

Rated Current Signal

0.3A

Polarization Key

POLARIZED HOUSING

Insulator Color

BLACK

Min. Çalışma Sıcaklığı

-35°C

Height Above Board

0.045 1.14mm

Insulation Resistance

50000000Ohm

Reliability

COMMERCIAL

Connector Type

Plug, Outer Shroud Contacts

Contact Materials

Gold, Nickel

Özellikler

Solder Retention
