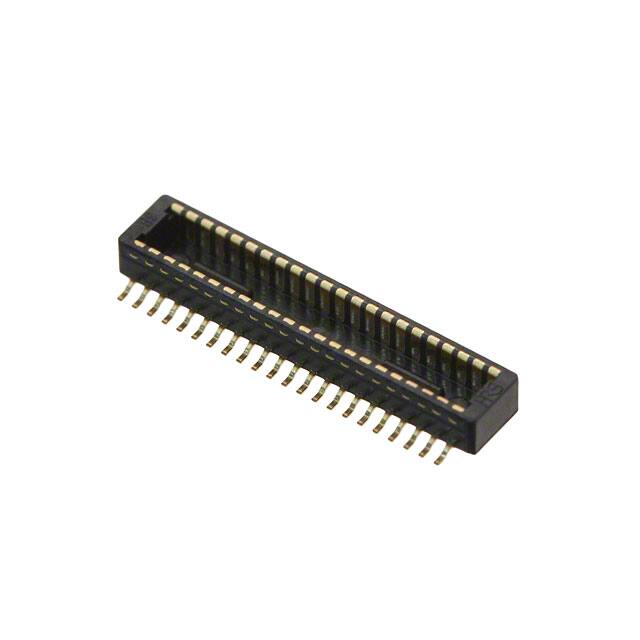

DF40C-40DP-0.4V(51)

Specifications

Contact Finish

Gold

Parça Durumu

Active

Durability

30 Cycles

Nominal Gerilim

30V

Total Number Of Contacts

40

Dielectric Withstanding Voltage

100VAC V

Contact Pattern

RECTANGULAR

Mil Conformance

NO

Connector Type

Plug, Outer Shroud Contacts

Reliability

COMMERCIAL

Height Above Board

0.045 1.14mm

Polarization Key

POLARIZED HOUSING

Insulator Color

BLACK

Rated Current Signal

0.3A

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Seri

DF40

Contact Resistance

90mOhm

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

Din Conformance

NO

Gender

Male

Bodyshell Style

RECEPTACLE

Sıra Sayısı

2

Pozisyon Sayısı

40

RoHS Durumu

RoHS Compliant

Terminal

SMD/SMT

Pitch

0.016 0.40mm

Stack Height Mating

1.5mm 2mm 2.5mm 3mm 3.5mm 4mm

Number Of Pcb Rows

2

Ul Flammability Code

94V-0

Contact Materials

Bronze

Özellikler

Solder Retention

Insulation Resistance

50000000Ohm

Min. Çalışma Sıcaklığı

-35°C

JESD-609 Kodu

e3

Akım Değeri

300mA

Iec Conformance

NO

Reach Svhc

No SVHC
