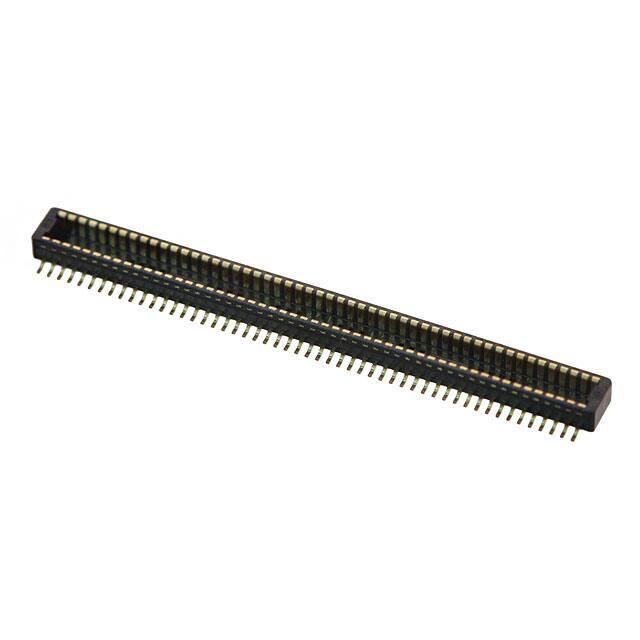

DF40C-100DP-0.4V(51)

Specifications

Number Of Pcb Rows

2

Stack Height Mating

1.5mm 2mm 2.5mm 3mm 3.5mm 4mm

Pitch

0.016 0.40mm

RoHS Durumu

RoHS Compliant

Terminal

SMD/SMT

Akım Değeri

300mA

Iec Conformance

NO

Depth

1.85mm

Min. Çalışma Sıcaklığı

-35°C

Özellikler

Solder Retention

Ul Flammability Code

94V-0

Contact Materials

Bronze

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

85°C

Radyasyon Dayanımı

No

Reach Svhc

Unknown

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Polymer

Max Current Rating

300mA

ECCN Kodu

EAR99

Montaj

Surface Mount

Uzunluk

21.52mm

Montaj Tipi

Surface Mount

Contact Finish Thickness

2.00μin 0.051μm

Max Voltage Rating Ac

30V

Number Of Conductors

ONE

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

30V

Housing Color

Black

Total Number Of Contacts

100

Durability

30 Cycles

Parça Durumu

Active

Contact Finish

Gold

Rated Current Signal

0.3A

Height Above Board

0.045 1.14mm

Polarization Key

POLARIZED HOUSING
