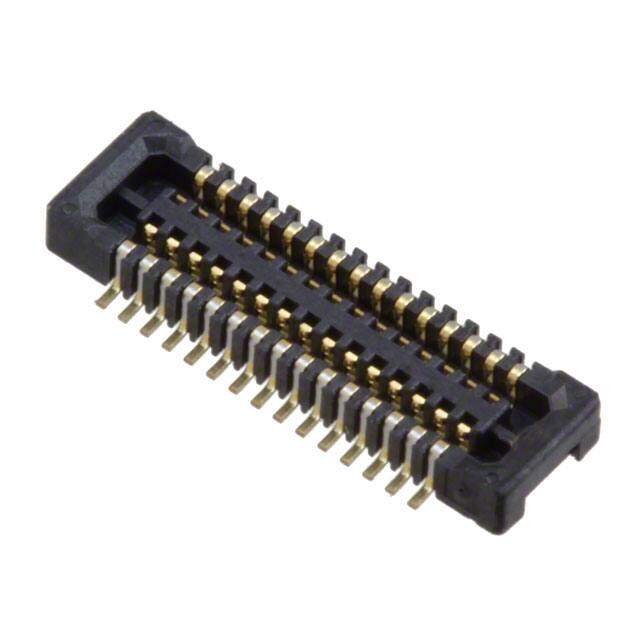

DF37NC-30DS-0.4V(51)

Specifications

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-35°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Finish

Gold

Parça Durumu

Active

Montaj

Surface Mount

Maks. Çalışma Sıcaklığı

85°C

Filter Feature

NO

Seri

DF37

Number Of Conductors

ONE

Reliability

COMMERCIAL

Contact Gender

FEMALE

Rated Current Signal

0.3A

Connector Type

Receptacle, Center Strip Contacts

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

30

Height Above Board

0.038 0.97mm

Pozisyon Sayısı

30

Akım Değeri

300mA

Ul Flammability Code

94V-0

Durability

10 Cycles

Pitch

0.016 0.40mm

Mil Conformance

NO

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Mixed Contacts

NO

Dielectric Withstanding Voltage

100VAC V

Insulation Resistance

50MOhm

Number Of Pcb Rows

2

Contact Materials

Bronze

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Terminal

SMD/SMT

Contact Resistance

100mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulator Color

BLACK

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Thickness

2.00μin 0.051μm
