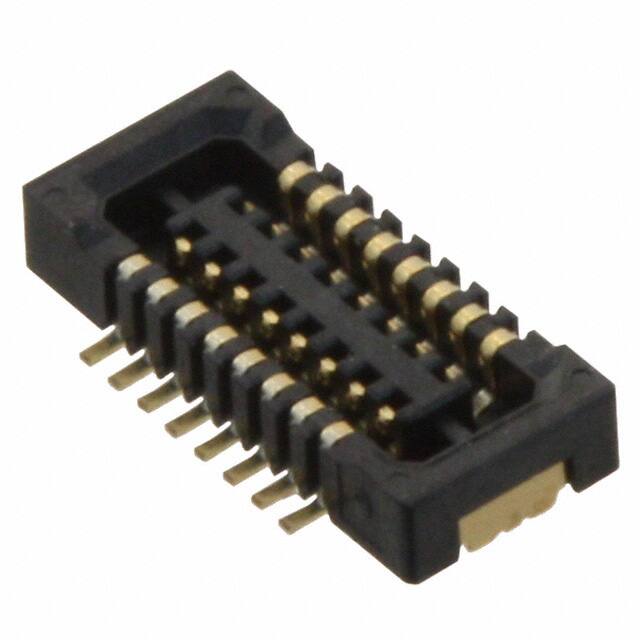

DF37NB-16DS-0.4V(75)

Specifications

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

Nominal Gerilim

30V

Body Breadth

0.117 inch

Pcb Contact Pattern

RECTANGULAR

Stack Height Mating

0.98mm

Contact Style

BELLOWED TYPE

Polarization Key

POLARIZED HOUSING

Sıra Sayısı

2

Contact Finish Thickness

3.94μin 0.10μm

Insulator Color

BLACK

Contact Resistance

100mOhm

Terminal

SMD/SMT

Reference Standard

UL

Contact Materials

PHOSPHOR BRONZE

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Insulation Resistance

50MOhm

Dielectric Withstanding Voltage

100VAC V

Durability

10 Cycles

Housing Material

Polymer

Pitch

0.016 0.40mm

Height Above Board

0.038 0.97mm

Pozisyon Sayısı

16

Body Depth

0.038 inch

Akım Değeri

300mA

Total Number Of Contacts

16

Connector Type

Receptacle, Center Strip Contacts

Rated Current Signal

0.3A

Fabrika Tedarik Süresi

10 Weeks

Reliability

COMMERCIAL

Number Of Conductors

ONE

Seri

DF37

Maks. Çalışma Sıcaklığı

85°C

Montaj

Surface Mount

Özellikler

Solder Retention

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-35°C
