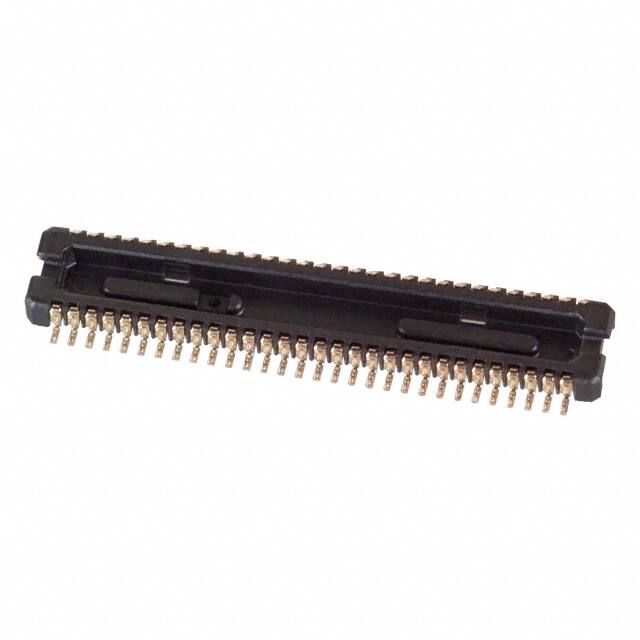

DF30FC-60DP-0.4V(82)

Specifications

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Ambalaj

Tape & Reel (TR)

Pitch

0.016 0.40mm

Housing Material

Polymer

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Seri

DF30

Contact Finish Thickness

2.00μin 0.051μm

Mixed Contacts

NO

Din Conformance

NO

Mil Conformance

NO

Lead Pitch

400μm

Pozisyon Sayısı

60

Akım Değeri

300mA

JESD-609 Kodu

e4

Parça Durumu

Active

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header, Center Strip Contacts

Ul Flammability Code

94V-0

Total Number Of Contacts

60

Additional Feature

LOW PROFILE

Filter Feature

NO

Option

GENERAL PURPOSE

Stack Height

900μm

Reach Svhc

Unknown

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Height Above Board

0.031 0.80mm

Housing Color

Black

Nominal Gerilim

30V

Gender

Male

Flammability Rating

UL94 V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish

Gold

Contact Materials

Bronze

Kurşunsuz Kodu

yes
