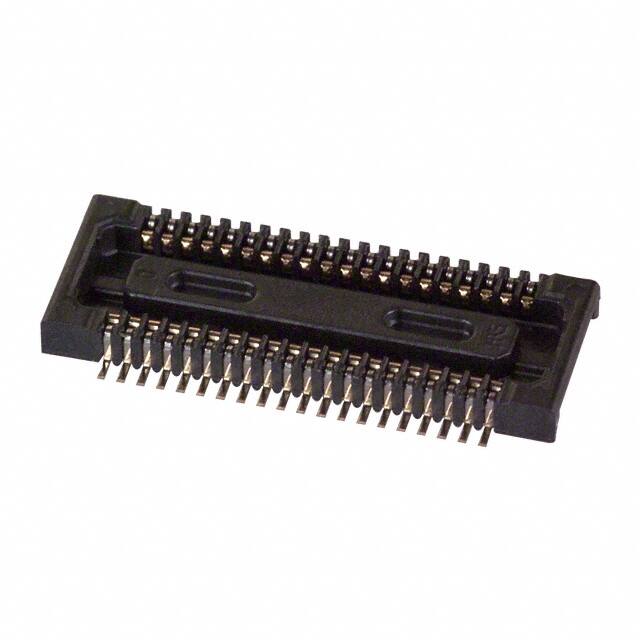

DF30FC-40DS-0.4V(82)

Specifications

Genişlik

3.76mm

JESD-609 Kodu

e4

Akım Değeri

300mA

Operating Temperature Max

85°C

Connector Type

Receptacle, Outer Shroud Contacts

Fabrika Tedarik Süresi

10 Weeks

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Mixed Contacts

NO

Body Depth

0.035 inch

Pozisyon Sayısı

40

Din Conformance

NO

Seri

DF30

Operating Temperature Min

-35°C

Pcb Contact Row Spacing

4.1656 mm

Housing Color

Black

Nominal Gerilim

30V

Flammability Rating

UL94 V-0

Height Above Board

0.035 0.88mm

Body Breadth

0.148 inch

Durability

50 Cycles

Kurşunsuz Kodu

yes

Yükseklik

900μm

Contact Finish

Gold

Contact Resistance

100mOhm

Uzunluk

10.2mm

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Montaj

Surface Mount

Orientation

Straight

Additional Feature

LOW PROFILE

Total Number Of Contacts

40

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Insulation Resistance

50000000Ohm

Parça Durumu

Active

Dielectric Withstanding Voltage

100VAC V

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

2.00μin 0.051μm

Lead Pitch

400μm
