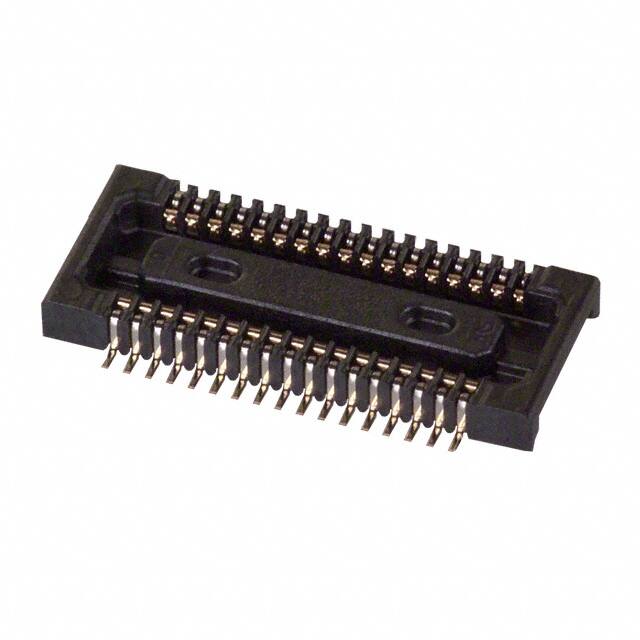

DF30FC-34DS-0.4V(81)

Specifications

Reference Standard

UL

Filter Feature

NO

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Contact Pattern

RECTANGULAR

Rated Current Signal

0.3A

Contact Materials

Bronze

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Body Length Or Diameter

0.313 inch

Housing Material

Polymer

Pitch

0.016 0.40mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Sıra Sayısı

2

Montaj Tipi

Surface Mount

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Contact Finish Thickness

2.00μin 0.051μm

Min. Çalışma Sıcaklığı

-35°C

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

50MOhm

Parça Durumu

Active

Dielectric Withstanding Voltage

100VAC V

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Insulator Color

BLACK

Additional Feature

LOW PROFILE

Total Number Of Contacts

34

Montaj

Surface Mount

Contact Gender

FEMALE

Contact Resistance

100mOhm

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

85°C

Kurşunsuz Kodu

yes

Durability

50 Cycles

Body Breadth

0.18 inch

Contact Finish

Gold
