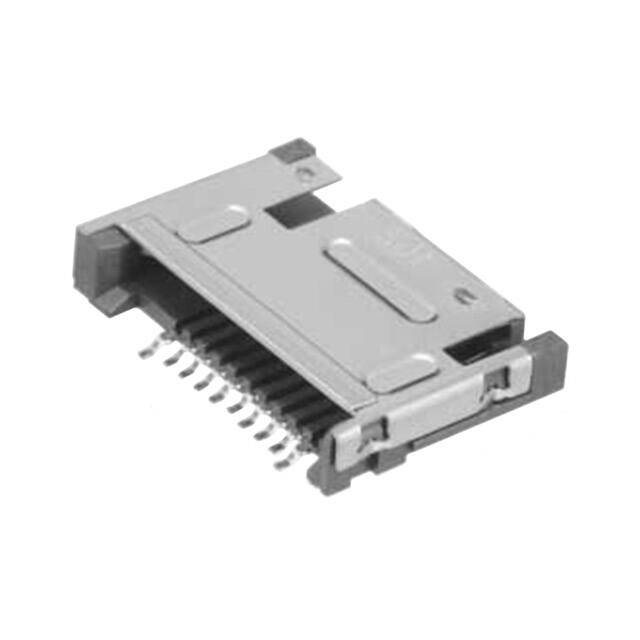

CB1AA-10S-1.5H(57)

Specifications

Insertion Removal Method

Push In, Pull Out

Pcb Contact Pattern

RECTANGULAR

Total Number Of Contacts

10

Kurşunsuz

Contains Lead

JESD-609 Kodu

e4

Number Of Conductors

ONE

Card Type

Memory Stick™

REACH Uyumluluk Kodu

unknown

Mounting Feature

Normal, Standard - Top

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

10

Iec Conformance

NO

Kılıf / Paket

SMD/SMT

Özellikler

Board Guide

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Connector

Body Length Or Diameter

1.051 inch

Seri

CB1

Operating Temperature Min

-20°C

Housing Color

Black

Filter Feature

NO

Mating Contact Pitch

0.059 inch

Option

GENERAL PURPOSE

Sıra Sayısı

1

Rated Current Signal

0.5A

Bodyshell Style

RECEPTACLE

Din Conformance

NO

Mating Information

NO

Parça Durumu

Obsolete

Additional Feature

LOW PROFILE

Insulation Materials

GLASS FILLED THERMOPLASTIC

Mil Conformance

NO

Body Depth

0.799 inch

Montaj

Surface Mount

Durability

12000 Cycles

Ambalaj

Tray

Contact Finish

Gold

Terminal Adımı

1.5mm
