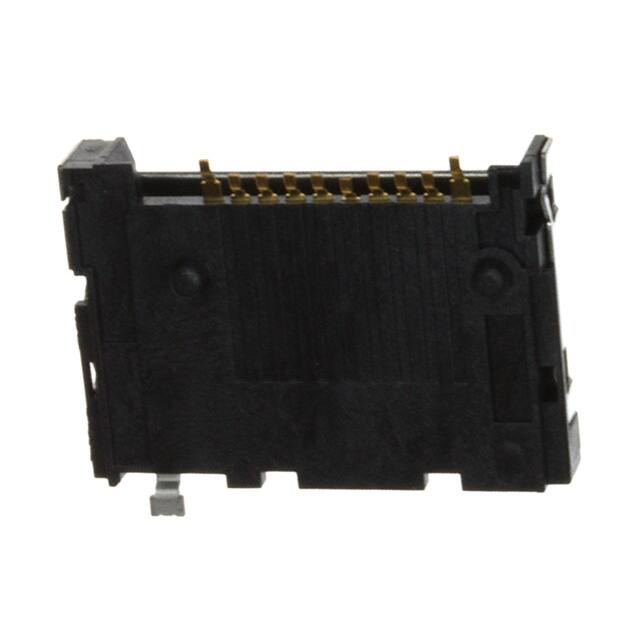

CB1AA-10S-1.5H(52)

Specifications

Kılıf / Paket

SMD/SMT

Mounting Feature

Normal, Standard - Top

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

10

Insulation Materials

GLASS FILLED THERMOPLASTIC

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Number Of Pcb Rows

1

Montaj Tipi

Surface Mount, Right Angle

Reliability

COMMERCIAL

Özellikler

Board Guide

Kurşunsuz

Lead Free

Total Number Of Contacts

10

Pcb Contact Pattern

RECTANGULAR

Insertion Removal Method

Push In, Pull Out

Card Type

Memory Stick™

Contact Style

BELLOWED TYPE

Number Of Conductors

ONE

Sıra Sayısı

1

Body Breadth

0.209 inch

Dielectric Withstanding Voltage

500VAC V

Mating Contact Pitch

0.059 inch

RoHS Durumu

RoHS Compliant

Height Above Board

0.209 5.30mm

Contact Pattern

RECTANGULAR

Contact Gender

FEMALE

Number Of Ports

1

Bodyshell Style

RECEPTACLE

Rated Current Signal

0.5A

Ambalaj

Tray

Durability

12000 Cycles

Body Depth

0.819 inch

Montaj

Surface Mount

Connector Type

Connector

Reference Standard

UL

Operating Temperature Min

-20°C

Housing Color

Black

Terminal Adımı

1.4986mm

Contact Materials

Bronze
