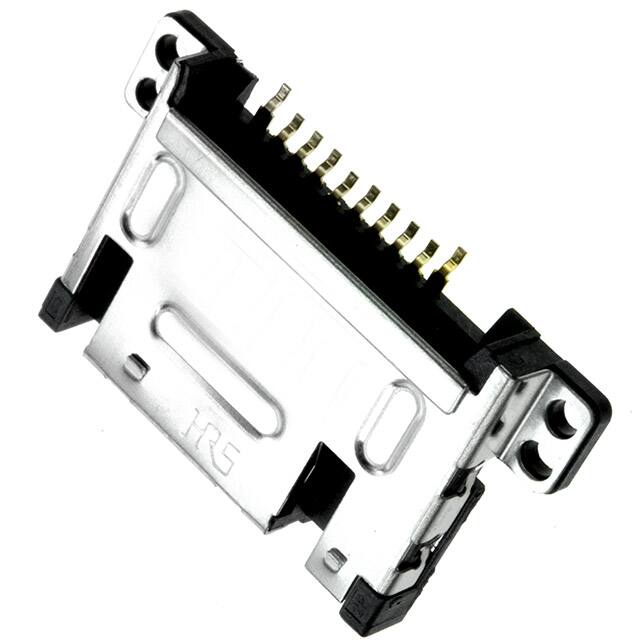

CB1A-10S-1.5H(52)

Specifications

Contact Style

BELLOWED TYPE

Card Type

Memory Stick™

Number Of Conductors

ONE

Insulation Resistance

1GOhm

Akım Değeri

500mA

Total Number Of Contacts

10

Pcb Contact Pattern

RECTANGULAR

Insertion Removal Method

Push In, Pull Out

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

1

Maks. Çalışma Sıcaklığı

85°C

Özellikler

Board Guide

Nominal Gerilim

125V

Reliability

COMMERCIAL

Kılıf / Paket

SMD/SMT

Parça Durumu

Obsolete

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Pozisyon Sayısı

10

Insulation Materials

GLASS FILLED THERMOPLASTIC

Mounting Feature

Normal, Standard - Top

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Reference Standard

UL

Seri

CB1

Contact Finish

Gold

Contact Materials

Bronze

Ambalaj

Tray

Pitch

1.5mm

Montaj

Surface Mount

Connector Type

Connector

Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-20°C

Height Above Board

0.209 5.30mm

Rated Current Signal

0.5A

Bodyshell Style

RECEPTACLE

Contact Gender

FEMALE

Dielectric Withstanding Voltage

500VAC V

Body Breadth

0.209 inch
