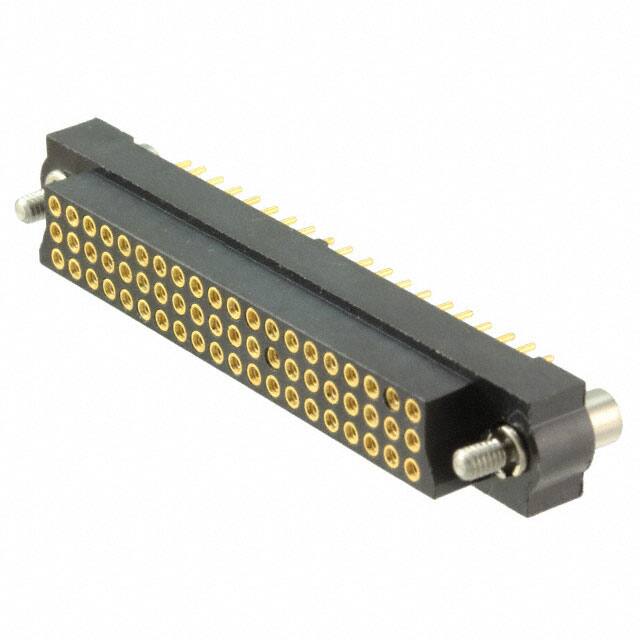

M83-LFT1F2N60-0000-000

Specifications

Durability

500 Cycles

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

Female

Insulation Color

Black

Yayın Yılı

2012

Applications

Automotive, General Purpose, Military

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

13 Weeks

Pcb Contact Pattern

RECTANGULAR

Body Length Or Diameter

2.087 inch

Contact Resistance

25mOhm

Pozisyon Sayısı

60

Contact Finish Thickness Mating

12.0μin 0.30μm

Sıra Sayısı

3

Terminal

Solder

Reference Standard

UL

Montaj

Through Hole

Iec Conformance

NO

Number Of Positions Loaded

All

Ambalaj

Tray

Contact Materials

Beryllium Copper

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Insertion Forcemax

1.0008 N

Lead Length

3mm

Stack Height Mating

10.65mm

Filter Feature

NO

Pitch Mating

0.079 2.00mm

Mating Contact Pitch

0.079 inch

Çalışma Sıcaklığı

-55°C~125°C

Terminal Adımı

2mm

Din Conformance

NO

Akım Değeri

3A

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Length Termination

0.118 inch
