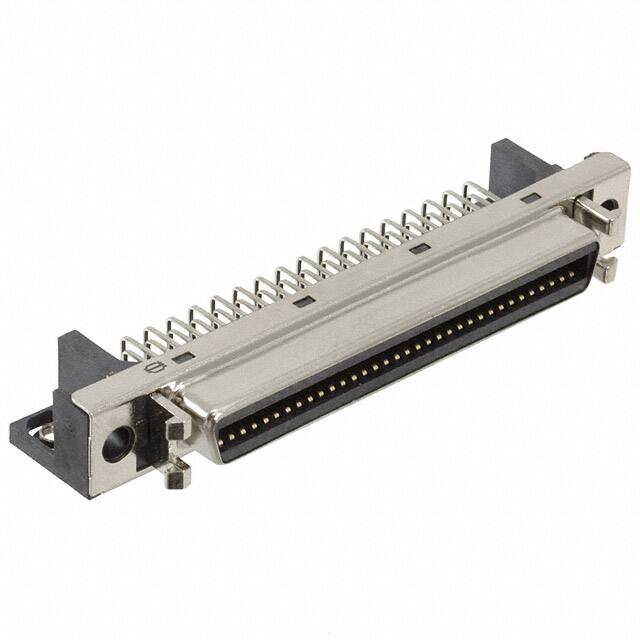

60110685732

Specifications

Rated Current Signal

1A

Option

GENERAL PURPOSE

Shell Finish

NICKEL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

4

Montaj

Panel, Through Hole

Pcb Contact Row Spacing

1.905 mm

Total Number Of Contacts

68

Reference Standard

UL

Mating Contact Row Spacing

0.098 inch

Mil Conformance

NO

Pcb Contact Pattern

STAGGERED

Operating Temperature Min

-55°C

Filter Feature

NO

Flange Feature

Housing/Shell (M2.6)

Connector Style

Outer Shroud Contacts

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Contact Materials

COPPER ALLOY

Din Conformance

NO

Terminal

Solder

Contact Finish

Gold

Contact Style

BELLOWED TYPE

Iec Conformance

NO

Reliability

COMMERCIAL

Body Depth

0.447 inch

Pozisyon Sayısı

68

Insulation Resistance

5000000000000Ohm

Mixed Contacts

NO

Contact Resistance

45mOhm

Tip

SCSI

ECCN Kodu

EAR99

Length Termination

0.116 inch

Seri

har-mik®

Sıra Sayısı

2

Operating Temperature Max

105°C

Contact Gender

FEMALE

Parça Durumu

Obsolete

Shell Material

STEEL

Montaj Tipi

Panel Mount, Through Hole, Right Angle
