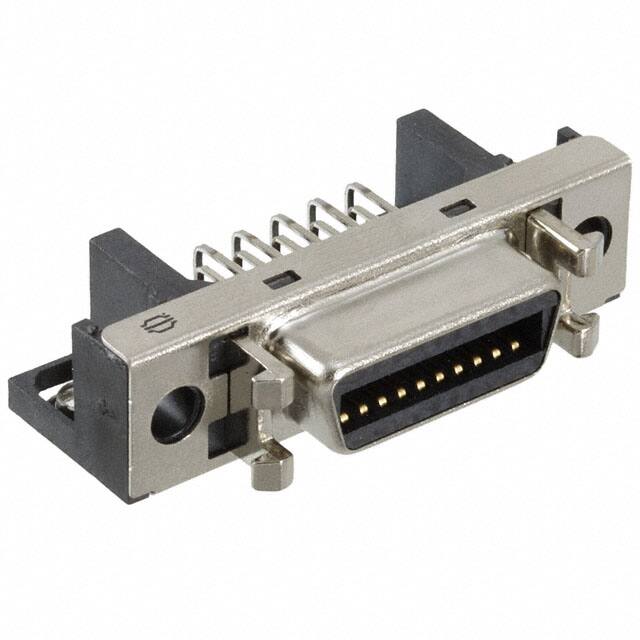

60110205732

Specifications

Montaj

Panel, Through Hole

Number Of Pcb Rows

4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

20

Pcb Contact Row Spacing

1.905 mm

Mil Conformance

NO

Mating Contact Row Spacing

0.098 inch

Reference Standard

UL

Pcb Contact Pattern

STAGGERED

Rated Current Signal

1A

Shell Finish

NICKEL

Option

GENERAL PURPOSE

Connector Style

Outer Shroud Contacts

Ul Flammability Code

94V-0

Flange Feature

Housing/Shell (M2.6)

Contact Materials

COPPER ALLOY

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Terminal

Solder

Body Length Or Diameter

1.313 inch

Operating Temperature Min

-55°C

Filter Feature

NO

Contact Resistance

45mOhm

Insulation Resistance

5000000000000Ohm

Mixed Contacts

NO

Tip

SCSI

ECCN Kodu

EAR99

Length Termination

0.116 inch

Seri

har-mik®

Sıra Sayısı

2

Contact Style

BELLOWED TYPE

Iec Conformance

NO

Contact Finish

Gold

Reliability

COMMERCIAL

Body Depth

0.447 inch

Pozisyon Sayısı

20

Insulator Color

BLACK

Empty Shell

NO

Contact Gender

FEMALE

Operating Temperature Max

105°C
