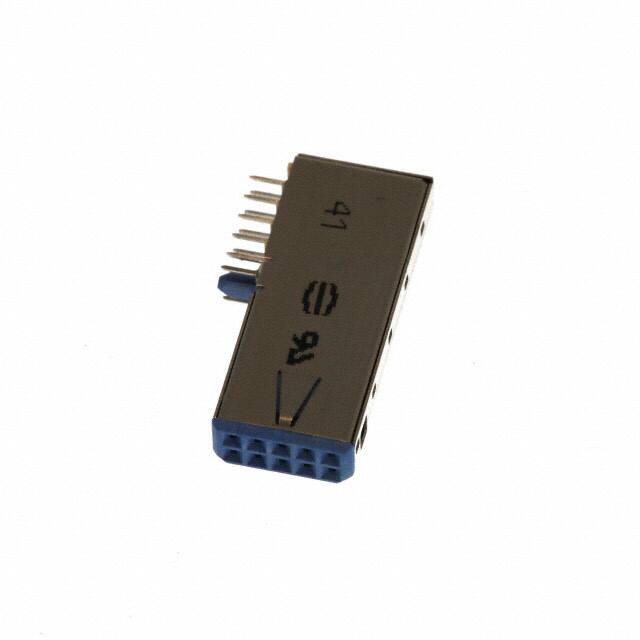

27211218006

Specifications

Mil Conformance

NO

Insulation Height

0.453 11.50mm

Gender

Receptacle

Terminal

Solder

Ambalaj

Bulk

Mixed Contacts

NO

Pozisyon Sayısı

10

Parça Durumu

Obsolete

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Number Of Columns

5

Iec Conformance

YES

Montaj

Through Hole

JESD-609 Kodu

e4

Özellikler

Board Guide, Shielding Pins

Reliability

COMMERCIAL

Seri

Har-link®

Akım Değeri

1.5A

Orientation

Right Angle

Length Termination

0.114 inch

Number Of Pcb Rows

5

Connector Type

Socket

Contact Materials

Copper Alloy

Option

GENERAL PURPOSE

Contact Type

Female Socket

Fastening Type

Push-Pull

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Number Of Conductors

ONE

Style

Board to Cable/Wire

Mating Contact Pitch

0.079 inch

Insulation Materials

Plastic

Contact Finish Mating

Gold

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes
